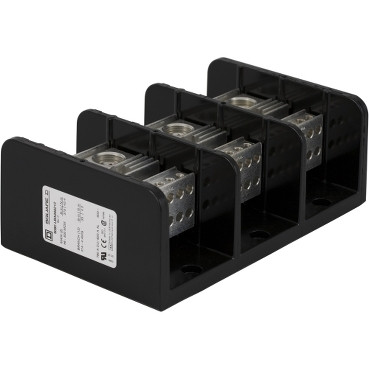

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
- Range : 9080LB
- Product : Power Distribution Block
- Current Rating : 760 A copper, 620 A aluminium
- Voltage Rating : 600 V AC/DC
- Mounting Type : Surface mount
- Number of poles : 3
- Terminals per Pole : 2 line, 12 load
- Electrical Connection : Tin plated aluminium lugs
- SCCR : 100 kA UL 508 A
- Ambient Air Temperature for Operation : -40…302 °F (-40…150 °C)
- Block Material : Phenolic: block
- Height : 5.5 in (139.70 mm)
- Width : 8.54 in (216.92 mm)
- Depth : 3.13 in (79.50 mm)
- End Barrier : 9080LB53
- Certifications : CE, UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01
- Category : US10CP121711
- Discount Schedule : 0CP1
- GTIN : 785901097570
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.40 in (8.636 cm)
- Package 1 Width : 5.90 in (14.986 cm)
- Package 1 Length : 8.80 in (22.352 cm)
- Package 1 Weight : 3.86 lb(US) (1.751 kg)
- Warranty : 18 months
