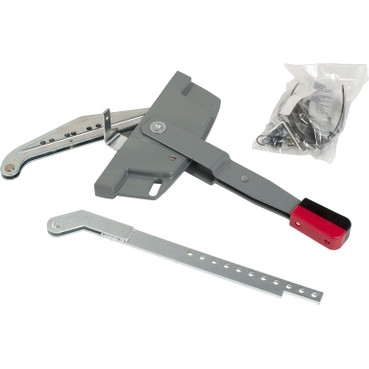

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 12 inch handle depth for NEMA 1/3/3R/4/12. This handle mechanism is for use with 400A 9422TG1 or 9422TG2 operating mechanisms. This product complies with UL standards.
- Product : Handle Mechanism
- For Use With : 9422TG2 disconnect switch, 9422TG1 disconnect switch
- Product Type : Variable depth
- Product destination : 9422TG1 disconnect switch, 9422TG2 disconnect switch
- Enclosure Types : NEMA 1/3/3R/4/12 enclosures
- Handle Length : 12 in (304.80 mm)
- Category : US10CP121732
- Discount Schedule : 0CP1
- GTIN : 785901624899
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 8.82 in (22.4 cm)
- Package 1 Width : 11.18 in (28.4 cm)
- Package 1 Length : 19.49 in (49.5 cm)
- Package 1 Weight : 6.00 lb(US) (2.72 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 32
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 36.00 in (91.44 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 192.00 lb(US) (87.09 kg)
- Warranty : 18 months
