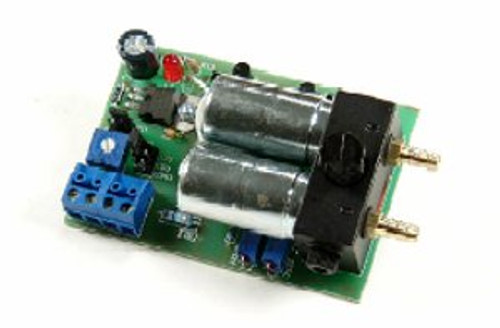

Item No: 127213
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Indivisible Sale Qty : 1
- Manufacturer : Automation Components, Inc.
- Supply Voltage : 24 VAC (+/- 10%), 50 or 60Hz, 24 VDC (+10% /-5%)
- Supply Current : 300 mAAC, 200mADC Maximum | 400mAAC, 200mADC on fail safe models
- Input Signal Source : 0-5 VDC @ 10,000 O | 0-10 VDC @ 10,000O | 0-15 VDC @ 10,000O | 0-20 mA @ 250O
- Feedback Output Signal Range : 0-5 VDC = Output Span
- Output Pressure Range : 0 to 15 psig (0-103.421 kPa) maximum
- Air Supply Pressure : Maximum: 25 psig (172.369 kPa) | Minimum: 18 psig (124.106 kPa)
- Output Pressure Accuracy : 1% full scale @ room temperature | 2% full scale across operating temperature range
- Manual / Auto Override Switch : MAN function = output can be varied | AUTO function = output is controlled from input signal
- Connections : 90° Pluggable Screw Terminal Blocks
- Wire Size : 16 (1.31 mm2) to 26 AWG (0.129 mm2)
- Terminal Block Torque Rating : 0.5 Nm (Minimum); 0.6 Nm (Maximum)
- Connections | Pneumatic Tubing Size-Type : 1/4” O.D. nominal (1/8” I.D.) polyethylene
- Gauge Pressure Range (Gauge Models) : 0-30 psig (0-200 kPa)
- Gauge Pressure Accuracy (Gauge Models) : ± 2.5% Midscale (± 3.5% Full Scale)
- Operating Temperature Range : 35 to 120°F (1.7 to 48.9°C)
- Operating RH Range : 10 to 95% non-condensing
- Storage Temperature Range : -20 to 150°F (-28.9 to 65.5°C)
- Snaptrack Material : Polyvinyl Chloride (PVC)
- Snaptrack Flammability Rating : UL94 V-0
- Product Dimensions : No Gauge: (L) 3.25” (W) 2.18” (H) 1.87” (82.55 x 55.37 x 47.49 mm)
- Agency Approvals : RoHS2, WEEE
