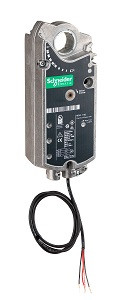

MS41-6343

[Us] rated supply voltage :

22...30 V DC~~

[Us] rated supply voltage :

24 V AC/DC

Actuator Product Range :

SmartX Actuator

Actuator Product Series :

Mx4x-6xxx

Actuator Type :

Electric

analogue input range :

2...10 V DC

analogue input range :

4...20 mA DC

Auxiliary Switch :

No

Brand :

Schneider Electric

By Schneider :

Yes

Conduit Connection :

1/2 in

Control Signal :

Proportional/Modulating

Feedback Signal :

2 to 10 VDC

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Hold-In Power Consumption In Va :

2.2 VA DC

Hold-In Power Consumption In Va :

4 VA AC

Humidity :

5…95 % non-condensing

Insulation Class :

Class II

IP Protection Rating :

IP10

IP Protection Rating :

IP56

Lead Length :

3 ft

Leads and Connections :

Plenum

Loss of Power Type :

Non-Spring Return

Manufacturer :

Schneider Electric

Material :

Die cast aluminium: housing

Mechanical Movement :

Rotary

Motor Type :

Brushless DC motor

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Position Indicator :

Pointer And Scale

Power Consumption Running VA :

3.4 VA DC

Power Consumption Running VA :

5.6 VA AC

Power Consumption Running Watts :

3.6 W

Product Alert :

Linkage required for Globe Valve Assembly use. NEMA 4 with customer supplied water tight conduit connectors.

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Actuator

Rotation :

92 °

Rotational Range Adjustment :

0 to 92 degrees

Selection Tools :

Valve Selection Tool

Take-back :

No

Temperature Ambient Operating Range :

-25…140 °F (-31.6…60 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Tightening Torque :

300 lb.in

Tightening Torque :

34 N.m

PDF :
