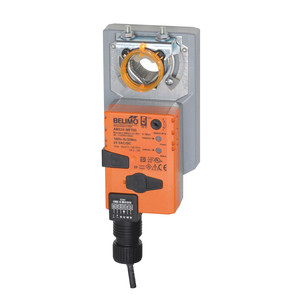

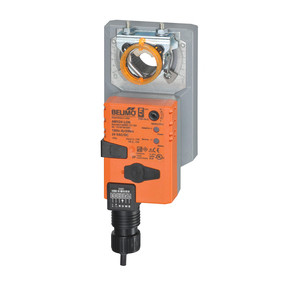

ConfigurableDamper Actuator, 180 in-lb [20 Nm], Non fail-safe, AC/DC 24 V, Modulating, Communicative, Hybrid, LON (FTT-10A)
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 3.5 W
- Power Consumption (Holding) : 1.3 W
- Power Consumption For Wire Sizing : 6 VA
- Torque : 180 in-lb [20 Nm]
- Control Type : LON (FTT-10A)
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 150 s / 90°
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -22...122°F [-30...50°C]
