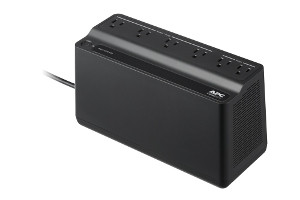

BE425M

acoustic level :

40 dBA~~

After sales category ASC :

01 - Replace by the same Commercial Reference : new (ie not refurbished)

Battery Charge Power (Watts) :

6 W rated

battery curve :

C

Battery Life :

3…5 year(s)

Battery power in VAH :

47 VAh runtime

Battery Slots Empty :

0

Battery Type :

Lead-Acid battery

Brand :

APC Brand

Cable Length :

5 ft (1.5 m)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Channel status :

Distribution

Color :

Black

Configurators/Selectors :

B2C Selector

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Personal Power

CR access level :

Non-Restricted - Does not require certified representative for installation

CR severity code :

06 - Product as a spare

CR shelf life :

12

curve equation :

Efficiency

curve fixed loss :

0.0114

curve load maximum :

100 %

curve load minimum :

2 %

curve proportional loss :

0

curve square loss :

0.0036

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

4.13 in (10.5 cm)

Efficiency at full load :

88...139 V

Extendable Run Time :

0

Final Result for Flywheel performance tracking :

Non Flywheel

For Service Catalog Item :

Finished good

Form name :

UPS

Global Keywords :

APC Back-UPS

Global Keywords :

AVR UPS

Global Keywords :

Battery backup,Uninterruptible Power Supply

Global Keywords :

Line interactive UPS

Global Keywords :

Power outage

Global Keywords :

Power protection

Global Keywords :

Schneider Electric Back UPS

Global Keywords :

Surge protection,automatic voltage regulation UPS

Global Keywords :

Ups

Global Keywords :

Wallmount UPS

graph display :

1

graph start point :

10

Height :

5.52 in (14.02 cm)

Included Battery Modules :

0

Input Connection Type :

NEMA 5-15P

Input Frequency :

50/60 Hz +/- 3 Hz auto-sensing

Kw Rating :

255 W

Lead time :

Usually in Stock

Liquid Electrolyte Value :

0

Main Input Voltage :

120 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

255 W

Maximum configurable power in VA :

425 VA

Maximum Input Current per phase :

5 A

Mounting Mode :

Not rack-mountable

Mounting Preference :

No preference

Net Weight :

5.7 lb(US) (2.6 kg)

Number Of Cables :

1

Number of power module filled slots :

0

Number of power module free slots :

0

Number of tare power :

1 W

OEM :

APC

Operating Altitude :

0...3000 ft

Optimized Energy Efficiency :

Energy efficient product

Order method :

ERP to ERP

output connection type :

2 NEMA 5-15R surge

output connection type :

4 NEMA 5-15R

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

120 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Preventive maintenance :

0

Prod Type :

UPS

Product Certifications :

California (CEC) Battery Charger

Product Certifications :

CTUVus

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

User Manual

Rated Power In Va :

425 VA

redundant :

No

Relative Humidity :

0…95 %

Removable battery :

User replaceable

Return code :

02 - Simple Recycle (SR)

SCC14 :

10731304329340

SCIP Number :

019b51cf-d7f1-4f06-ac85-1378fc94c7aa

show note OP temperature :

No

Spare Part Order Method direction :

Consult local ERP Setup

Spare used in spare kit :

No

Storage Altitude :

0…5000 ft (0…1524 m)

Storage Relative Humidity :

0…95 %

Surge energy rating :

180 J

switching current capacity :

7 A

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

-4…122 °F (-20…50 °C)

Topology :

Standby

Transfer Time :

6ms typical : 10ms maximum

two post mountable :

0

Typical recharge time :

8 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS size :

WS

USB compatible :

No

Warranty :

3 years repair or replace

Waveform Type :

Square wave

Width :

9.98 in (25.35 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UPS-JSIE-ACWPT6_R0_EN.PDF
