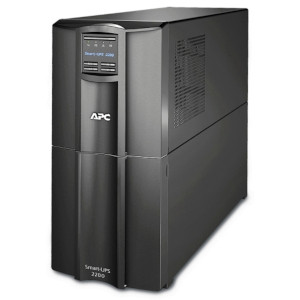

SMT2200US

acoustic level :

45 dBA~~

additional specification :

TAA compliance

After sales category ASC :

01 - Replace by the same Commercial Reference : new (ie not refurbished)

Battery Charge Power (Watts) :

233 W rated

battery curve :

B

Battery Life :

3…5 year(s)

Battery power in VAH :

702 VAh runtime

Battery Slots Empty :

0

Battery Type :

Lead-Acid battery

Brand :

APC Brand

Cable Length :

6 ft (1.8 m)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

3758

Channel status :

Distribution

Color :

Black

communication port type :

SmartSlot

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Business Power

Control panel :

Multi-function LCD status and control console

CR access level :

Non-Restricted - Does not require certified representative for installation

CR severity code :

06 - Product as a spare

CR shelf life :

12

curve equation :

Efficiency

curve fixed loss :

0.0058

curve load maximum :

100 %

curve load minimum :

1 %

curve proportional loss :

0

curve square loss :

0.0136

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

21.42 in (54.4 cm)

Efficiency at full load :

75...154 V adjustable

Efficiency at full load :

82...144 V

Emergency Power Off (EPO) :

Yes

Equipment protection policy :

Lifetime : $150000

Extendable Run Time :

0

Filtering :

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

For Service Catalog Item :

Finished good

Form name :

UPS

free slots :

1

Global Keywords :

2.2kVA UPS

Global Keywords :

APC Smart-UPS

Global Keywords :

Battery backup

Global Keywords :

EcoStruxure IT

Global Keywords :

Network monitoring UPS

Global Keywords :

Powerchute software

Global Keywords :

Remote monitoring ups

Global Keywords :

Schneider Electric Smart UPS

Global Keywords :

Sine wave AVR UPS

Global Keywords :

SMT automatic voltage regulation UPS

Global Keywords :

Tower UPS

Global Keywords :

Uninterruptible power supply

Global Keywords :

Ups

Global Keywords :

UPS software

Global warming ; Total life cycle? :

3 758 kg CO2 eq.

graph display :

1

harmonic distortion :

Less than 5%

Heat Dissipation :

275 Btu/h

Height :

17.01 in (43.2 cm)

Included Battery Modules :

0

Input Connection Type :

NEMA 5-20P

Input Frequency :

50/60 Hz +/- 3 Hz auto-sensing

Kw Rating :

1920 W

Lead time :

Usually Ships within 2 Weeks

Liquid Electrolyte Value :

0

Main Input Voltage :

120 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

1980 W

Maximum configurable power in VA :

2200 VA

Mounting Location :

Front

Mounting Mode :

Not rack-mountable

Mounting Preference :

No preference

Net Weight :

112.24 lb(US) (50.91 kg)

Number Of Cables :

1

Number of power module :

0

Number of power module filled slots :

0

Number of power module free slots :

0

Number of tare power :

47 W

OEM :

APC

Operating Altitude :

0...10000 ft

Optimized Energy Efficiency :

Energy efficient product

Order method :

ERP to ERP

output connection type :

2 NEMA 5-20R

output connection type :

8 NEMA 5-15R

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

120 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

performance multiplier :

1

Preventive maintenance :

0

Prod Type :

UPS

Product Certifications :

CSA

Product Certifications :

TAA compliance

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

CD with software

Provided Equipment :

Documentation CD

Provided Equipment :

Smart UPS signalling RS-232 cable

Provided Equipment :

USB cable

Rated Power In Va :

1920 VA

RBC Quantity :

1

redundant :

No

Relative Humidity :

0…95 %

Removable battery :

User replaceable

Return code :

03 - Return for Qualified Recycle (RQR)

show note OP temperature :

No

size UPS version :

Internetworking

size UPS version :

Server

size UPS version :

Telecom

Spare Part Order Method direction :

Consult local ERP Setup

Spare used in spare kit :

No

Storage Altitude :

0…50000 ft (0…15240 m)

Storage Relative Humidity :

0…95 %

Surge energy rating :

530 J

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

5…113 °F (-15…45 °C)

Topology :

Line Interactive

Transfer Time :

4ms typical : 8ms maximum

two post mountable :

0

Typical recharge time :

3 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS size :

S

USB compatible :

Yes

value multiplier :

1

Warranty :

3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Waveform Type :

Sine wave

Width :

7.72 in (19.6 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UPS-SMT2200US_DATASHEET.PDF
