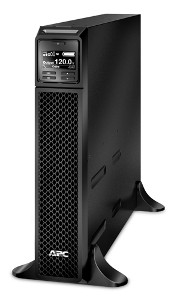

SRT2200XLA

additional specification :

High density~~

After sales category ASC :

03 - Replace by the "same" Commercial Reference but Refurbished or Remanufactured

Battery Charge Power (Watts) :

102 W rated

battery curve :

D

battery design life :

2 year(s)

Battery Life :

3…5 year(s)

battery option :

SRT72BP 1 918 VAh

battery option :

SRT72BP 10 6426 VAh

battery option :

SRT72BP 2 1530 VAh

battery option :

SRT72BP 3 2142 VAh

battery option :

SRT72BP 4 2754 VAh

battery option :

SRT72BP 5 3366 VAh

battery option :

SRT72BP 6 3978 VAh

battery option :

SRT72BP 8 5202 VAh

Battery power in VAH :

306 VAh runtime

Battery Slots Empty :

0

Battery Type :

Lead-Acid battery

Battery Voltage :

72V

Brand :

APC Brand

bypass type :

Internal Bypass (Automatic and Manual)

Cable Length :

6 ft (1.8 m)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

3353

Channel status :

Distribution

Color :

Black

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Business Power

CR access level :

Non-Restricted - Does not require certified representative for installation

CR severity code :

06 - Product as a spare

CR shelf life :

12

crest factor :

3 : 1

curve equation :

Efficiency

curve fixed loss :

0.0249

curve load maximum :

100 %

curve load minimum :

3 %

curve proportional loss :

0.0175

curve square loss :

0.0413

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

22.99 in (58.4 cm)

Emergency Power Off (EPO) :

Yes

Extendable Run Time :

1

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

For Service Catalog Item :

Finished good

Form name :

UPS

free slots :

1

Global Keywords :

Smartup

Global Keywords :

Smartups

Global Keywords :

Ups

Global warming ; Total life cycle? :

3 353 kg CO2 eq.

graph display :

1

harmonic distortion :

Less than 2%

Heat Dissipation :

535 Btu/h

Height :

3.35 in (8.5 cm)

Included Battery Modules :

1

Input Connection Type :

NEMA 5-20P

Input Frequency :

40 - 70 Hz auto-sensing

IP Degree of Protection :

IP20

Kw Rating :

1800 W

Lead time :

Usually in Stock

Liquid Electrolyte Value :

0

Main Input Voltage :

120 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

1800 W

Maximum configurable power in VA :

2200 VA

Mounting Location :

Front

Mounting Mode :

Not rack-mountable

mounting position :

Vertical

Mounting Preference :

Lower

Net Weight :

55.1 lb(US) (25 kg)

Number Of Cables :

1

Number of power module :

1400

Number of power module filled slots :

0

Number of power module free slots :

0

Number of tare power :

26 W

OEM :

APC

Operating Altitude :

0...10000 ft

Optimized Energy Efficiency :

Energy efficient product

Order method :

ERP to ERP

output connection type :

1 NEMA L5-20R

output connection type :

6 NEMA 5-20R

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

120 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

performance multiplier :

1

Presentation :

High density, double-conversion on-line power protection with scalable runtime.

Preventive maintenance :

0

Prod Type :

UPS

Product Certifications :

ENERGY STAR V2.0 (USA)

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

Installation guide

Provided Equipment :

Removable support feet

Provided Equipment :

USB cable

Provided Equipment :

Warranty card

Rated Power In Va :

2200 VA

RBC Quantity :

1

redundant :

No

Relative Humidity :

0…95 % non-condensing

Removable battery :

User replaceable

Return code :

01 - Return for Repair (RFR)

show note OP temperature :

No

size UPS version :

Internetworking

size UPS version :

Server

size UPS version :

Telecom

Spare Part Order Method direction :

Consult local ERP Setup

Spare used in spare kit :

No

Storage Altitude :

0…50000 ft (0…15240 m)

Storage Relative Humidity :

0…95 % Non-condensing

Surge energy rating :

340 J

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

5…113 °F (-15…45 °C)

Topology :

Double Conversion Online

two post mountable :

0

Typical recharge time :

3 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS design life :

7 year(s)

UPS size :

S

USB compatible :

Yes

value multiplier :

1

Warranty :

3 years repair or replace (excluding battery) and 2 years for battery

Waveform Type :

Sine wave

Width :

17.01 in (43.2 cm)
