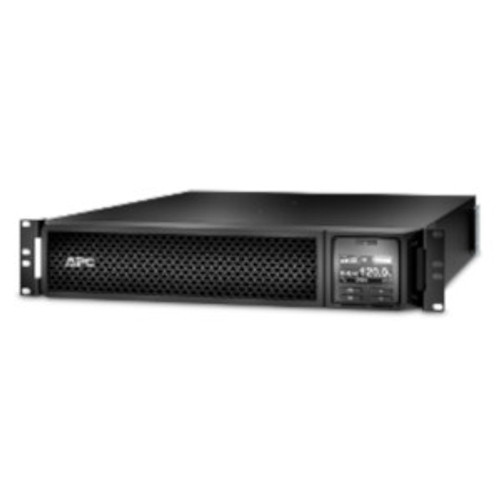

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Lead time : Usually in Stock
- Main Input Voltage : 120 V
- Main Output Voltage : 120 V
- Kw Rating : 1800 W
- Rated power in VA : 2200 VA
- Input Connection Type : NEMA 5-20P
- output connection type : 6 NEMA 5-20R
1 NEMA L5-20R
- Number of rack unit : 2U
- Cable length : 6 ft (1.83 m)
- Number of cables : 1
- Run Time : View Runtime Graph
- Efficiency : View Efficiency Graph
- Battery Type : Lead-Acid battery
- Included Battery Modules : 1
- Battery Slots Empty : 0
- Typical recharge time : 3 h
- RBC Quantity : 1
- Battery Voltage : 72V
- Battery Charge Power (Watts) : 102 W rated
- Battery Life : 3…5 year(s)
- Replacement battery : APCRBC141
- Extendable Run Time : 1
- Topology : Double Conversion Online
- product web sub-family : High density
- Number of power module : 1400
- Number of power module free slots : 0
- Number of power module filled slots : 0
- Redundant : No
- color : Black
- Height : 3.35 in (8.5 cm)
- Width : 17.01 in (43.2 cm)
- Depth : 22.99 in (58.4 cm)
- Net Weight : 55.01 lb(US) (24.95 kg)
- Mounting Location : Front
- Mounting preference : Lower
- Mounting Mode : Rack-mounted
- Two post mountable : 0
- USB compatible : Yes
- Mounting position : Horizontal
- Input Frequency : 40 - 70 Hz auto-sensing
- Maximum configurable power in VA : 2200 VA
- Max Configurable Power (Watts) : 1800 W
- Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz sync to mains
- Wave type : Sine wave
- Harmonic distortion : Less than 2%
- Crest factor : 3 : 1
- Bypass type : Built-in Bypass
- Product Certifications : ENERGY STAR V2.0 (USA)
- Ambient Air Temperature for Operation : 32…104 °F (0…40 °C)
- Relative Humidity : 0…95 % non-condensing
- Operating altitude : 0...10000 ft
- Ambient Air Temperature for Storage : -4…122 °F (-20…50 °C)
- Storage Relative Humidity : 0…95 % non-condensing
- Storage altitude : 0…50000 ft (0.00…15240.00 m)
- Acoustic level : 55 dBA
- heat dissipation : 535 Btu/h
- IP degree of protection : IP20
- Free slots : 1
- Emergency Power Off (EPO) : Yes
- Surge energy rating : 340 J
- GTIN : 731304323051
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 9.69 in (24.6 cm)
- Package 1 Width : 31.89 in (81 cm)
- Package 1 Length : 23.58 in (59.9 cm)
- Package 1 Weight : 75.00 lb(US) (34.02 kg)
