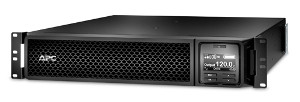

APC Smart-UPS SRT 3000VA RM 208V
- acoustic level : 55 dBA~~
- Additional Information : Configurable for 208 or 240 nominal output voltage
- additional specification : High density
- After sales category ASC : 03 - Replace by the "same" Commercial Reference but Refurbished or Remanufactured
- Battery Charge Power (Watts) : 165 W rated
- battery curve : D
- battery design life : 2 year(s)
- Battery Life : 3…5 year(s)
- battery option : SRT96RMBP 1 1491 VAh
- battery option : SRT96RMBP 10 10437 VAh
- battery option : SRT96RMBP 2 2485 VAh
- battery option : SRT96RMBP 3 3479 VAh
- battery option : SRT96RMBP 4 4473 VAh
- battery option : SRT96RMBP 5 5467 VAh
- battery option : SRT96RMBP 6 6461 VAh
- battery option : SRT96RMBP 8 8449 VAh
- Battery power in VAH : 497 VAh runtime
- Battery Type : Lead-Acid battery
- Battery Voltage : 96V
- Brand : APC Brand
- bypass type : Internal Bypass (Automatic and Manual)
- Cable Length : 10 ft (3.05 m)
- Carbon footprint (kg CO2 eq, Total Life cycle) : 5000
- Channel status : Distribution
- Color : Black
- Configurators/Selectors : Computer rooms
- Configurators/Selectors : NetShelter
- Configurators/Selectors : PowerStruXure Type A
- Configurators/Selectors : UPS Selector
- Configurators/Selectors : UPS Selector Business Power
- Configurators/Selectors : Wiring closets
- CR severity code : 06 - Product as a spare
- CR shelf life : 12
- crest factor : 3 : 1
- curve equation : Efficiency
- curve fixed loss : 0.0212
- curve load maximum : 100 %
- curve load minimum : 3 %
- curve proportional loss : 0.022
- curve square loss : 0.0242
- curve X-axis maximum : 100 %
- curve X-axis minimum : 0 %
- curve X-axis title : Load
- curve X-axis units : Percentage
- curve Y-axis maximum : 100 %
- curve Y-axis minimum : 50 %
- curve Y-axis title : Efficiency
- curve Y-axis units : Percentage
- Depth : 25.00 in (63.5 cm)
- Efficiency at full load : 100...275 V adjustable (half load)
- Emergency Power Off (EPO) : Yes
- Extendable Run Time : 1
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- For Service Catalog Item : Finished good
- Form name : UPS
- free slots : 1
- Global Keywords : 3000VA UPS
- Global Keywords : 3kVA sine wave UPS
- Global Keywords : APC Smart-UPS
- Global Keywords : Battery backup
- Global Keywords : Double conversion UPS
- Global Keywords : EcoStruxure IT UPS
- Global Keywords : Extendable runtime UPS
- Global Keywords : On-line UPS
- Global Keywords : Powerchute UPS software
- Global Keywords : Rack tower convertible UPS
- Global Keywords : Rackmount UPS
- Global Keywords : Schneider Electric Smart UPS
- Global Keywords : SmartSlot UPS
- Global Keywords : SRT UPS
- Global Keywords : Uninterruptible power supply
- Global Keywords : Ups
- Global warming ; Total life cycle? : 5 000 kg CO2 eq.
- graph display : 1
- harmonic distortion : Less than 2%
- Heat Dissipation : 773 Btu/h
- Height : 3.35 in (8.5 cm)
- Included Battery Modules : 2
- Input Connection Type : NEMA L6-20P
- Input Frequency : 40 - 70 Hz auto-sensing
- IP Degree of Protection : IP20
- Kw Rating : 2700 W
- Lead time : Usually in Stock
- Liquid Electrolyte Value : 0
- Main Input Voltage : 208 V
- Manufacturer : American Power Conversion Corp. (APC)
- Max Configurable Power (Watts) : 2700 W
- Maximum configurable power in VA : 3000 VA
- Mounting Location : Front
- Mounting Mode : Rack-mounted
- mounting position : Horizontal
- Mounting Preference : Lower
- Net Weight : 69.005 lb(US) (31.3 kg)
- Number Of Cables : 1
- Number of power module filled slots : 0
- Number of power module free slots : 0
- number of rack unit : 2U
- Number of tare power : 53 W
- OEM : APC
- Operating Altitude : 0...10000 ft
- Optimized Energy Efficiency : Energy efficient product
- Order method : ERP to ERP
- Other Input Voltages : 240 V
- Other Output Voltages : 240 V
- output connection type : 1 NEMA L6-30R
- output connection type : 2 NEMA L6-20R
- Output frequency : 50/60 Hz +/- 3 Hz sync to mains
- Output Voltage : 208 V
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- performance multiplier : 1
- Preventive maintenance : 0
- Prod Type : UPS
- Product Certifications : ENERGY STAR V2.0 (USA)
- Product Or Component Type : Uninterruptible power supply (UPS)
- Provided Equipment : CD with software
- Provided Equipment : Documentation CD
- Provided Equipment : Installation guide
- Provided Equipment : Rack Mounting brackets
- Provided Equipment : Rack mounting hardware
- Provided Equipment : Rack Mounting support rails
- Provided Equipment : USB cable
- Provided Equipment : Warranty card
- Rated Power In Va : 3000 VA
- RBC Quantity : 1
- redundant : No
- Relative Humidity : 0…95 % non-condensing
- Removable battery : User replaceable
- Return code : 01 - Return for Repair (RFR)
- SCIP Number : A64c500c-f72a-458b-8faa-8175a94429fe
- show note OP temperature : No
- size UPS version : Internetworking
- size UPS version : Server
- size UPS version : Telecom
- Spare Part Order Method direction : Consult local ERP Setup
- Spare used in spare kit : No
- Storage Altitude : 0…50000 ft (0…15240 m)
- Storage Relative Humidity : 0…95 % Non-condensing
- Surge energy rating : 340 J
- Take-back : Yes
- Temperature Ambient Operating Range : 32…104 °F (0…40 °C)
- Temperature Shipping and Storage Range : 5…113 °F (-15…45 °C)
- Topology : Double Conversion Online
- two post mountable : 0
- Typical recharge time : 3 h
- UNSPSC Classification v19 : 39121011
- UNSPSC Classification v23 : 39121011
- UPS design life : 7 year(s)
- UPS size : S
- USB compatible : Yes
- value multiplier : 1
- Waveform Type : Sine wave
- Width : 17.01 in (43.2 cm)
