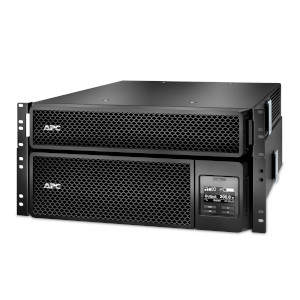

SRT5KRMXLT

acoustic level :

55 dBA~~

additional specification :

High density

After sales category ASC :

03 - Replace by the "same" Commercial Reference but Refurbished or Remanufactured

Battery Charge Power (Watts) :

556 W rated

battery curve :

D

battery design life :

2 year(s)

Battery Life :

3…5 year(s)

battery option :

SRT192RMBP 1 2520 VAh

battery option :

SRT192RMBP 10 17640 VAh

battery option :

SRT192RMBP 2 4200 VAh

battery option :

SRT192RMBP 3 5880 VAh

battery option :

SRT192RMBP 4 7560 VAh

battery option :

SRT192RMBP 5 9240 VAh

battery option :

SRT192RMBP 6 10920 VAh

battery option :

SRT192RMBP 8 14600 VAh

Battery power in VAH :

840 VAh runtime

Battery Slots Empty :

0

Battery Type :

Lead-Acid battery

Battery Voltage :

192V

Brand :

APC Brand

bypass type :

Internal Bypass (Automatic and Manual)

Cable Length :

10 ft (3.05 m)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

8949

Channel status :

Distribution

Color :

Black

Configurators/Selectors :

NetShelter

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Business Power

Configurators/Selectors :

Wiring closets

CR access level :

Non-Restricted - Does not require certified representative for installation

CR severity code :

06 - Product as a spare

CR shelf life :

12

crest factor :

3 : 1

curve equation :

Efficiency

curve fixed loss :

0.0136

curve load maximum :

100 %

curve load minimum :

2 %

curve proportional loss :

0.0223

curve square loss :

0.0244

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

28.31 in (71.9 cm)

Efficiency at full load :

100...275 V adjustable (half load)

Emergency Power Off (EPO) :

Yes

Extendable Run Time :

1

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

For Service Catalog Item :

Finished good

Form name :

UPS

free slots :

1

Global Keywords :

Smartup

Global Keywords :

Smartups

Global Keywords :

Ups

Global warming ; Total life cycle? :

8 949 kg CO2 eq.

graph display :

1

harmonic distortion :

Less than 2%

Heat Dissipation :

1047 Btu/h

Height :

5.12 in (13 cm)

Included Battery Modules :

0

Input Connection Type :

NEMA L6-30P

Input Frequency :

40 - 70 Hz auto-sensing

IP Degree of Protection :

IP20

Kw Rating :

4800 W

Lead time :

Usually in Stock

Liquid Electrolyte Value :

0

Main Input Voltage :

208 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

4800 W

Maximum configurable power in VA :

5400 VA

Mounting Location :

Front

Mounting Mode :

Rack-mounted

mounting position :

Horizontal

Mounting Preference :

No preference

Net Weight :

123.00 lb(US) (55.79 kg)

Number Of Cables :

1

Number of power module filled slots :

0

Number of power module free slots :

0

number of rack unit :

3U

Number of tare power :

77 W

OEM :

APC

Operating Altitude :

0...10000 ft

Optimized Energy Efficiency :

Energy efficient product

Order method :

ERP to ERP

Other Input Voltages :

240 V

Other Output Voltages :

240 V

output connection type :

2 NEMA L6-20R

output connection type :

2 NEMA L6-30R

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

208 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pre-Installed SmartSlotâ„¢ Cards :

Network management card 3 with environmental monitoring

Presentation :

High density, double-conversion on-line power protection with scalable runtime.

Preventive maintenance :

0

Prod Type :

UPS

Product Certifications :

ENERGY STAR V2.0 (USA)

Product Certifications :

NOM

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

Documentation CD

Provided Equipment :

Rack Mounting brackets

Provided Equipment :

Rack mounting hardware

Provided Equipment :

Rack Mounting support rails

Provided Equipment :

USB cable

Provided Equipment :

User Manual

Provided Equipment :

Warranty card

Provided Equipment :

Web/SNMP Management Card

Rated Power In Va :

5400 VA

RBC Quantity :

1

redundant :

No

Relative Humidity :

0…95 % non-condensing

Removable battery :

User replaceable

Return code :

01 - Return for Repair (RFR)

show note OP temperature :

No

Spare Part Order Method direction :

Consult local ERP Setup

Spare used in spare kit :

No

Storage Altitude :

0…50000 ft (0…15240 m)

Storage Relative Humidity :

0…95 % Non-condensing

Surge energy rating :

480 J

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

5…113 °F (-15…45 °C)

Topology :

Double Conversion Online

two post mountable :

0

Typical recharge time :

1.5 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS design life :

7 year(s)

UPS size :

S

USB compatible :

Yes

Warranty :

3 years repair or replace (excluding battery) and 2 years for battery

Waveform Type :

Sine wave

Width :

17.01 in (43.2 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UPS-JPRO-9QHRU2_R0_EN.PDF
