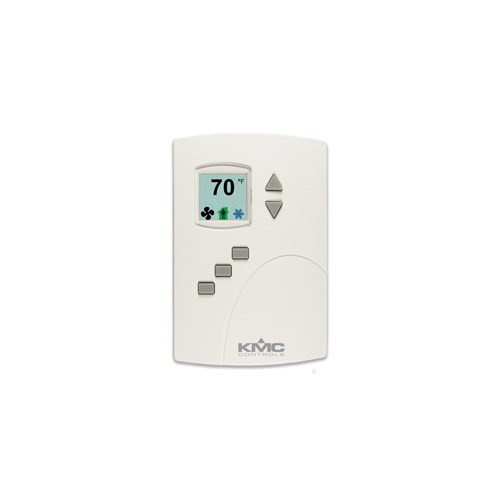

AppStat: RTU, 2H/2C, Econ, Dehum :- The KMC AppStat combines the power of a space-mounted equipment controller with the convenience of built-in temperature, humidity and motion sensors. The controllers include a wide range of factory supplied programs for the following applications. Two and four pipe fan coil unitsRoof top unitsHeat pump unitsPackaged and split unitary systems Stand alone operation No special programming, software applications, or setup tools are required to configure and commission an AppStat. New or retrofit applications The attractive two-piece design is ideal for new installations or upgrades of older, less efficient thermostats. Bright, full-color displayThe full color display is easy to read across a room even in bright sunlight. Users can easily choose between Fahrenheit or Celsius values. Network ready All models are native BACnet, Application Specific Controllers ready to connect to a BACnet MS/TP network. Fan Coil Units AppStats for the control of fan coil units are available with inputs, outputs, and sequences of operation for the following functions. Three-speed or modulating fan controlAutomatic or manual fan controlTwo-pipe heating and cooling with either on/off or modulating valvesFour-pipe heating and cooling with either on/off or modulating valvesRemote space temperature sensorLocal temperature setback mode based on optional built-in motion sensorDehumidification on models with humidity sensor Roof Top and Unitary Units AppStats for the control of roof top or similar packaged or split unitary units are available with inputs, outputs, and sequences of operation for the following functions. Automatic or manual fan controlModulating valves or on/off heating and cooling valves.One or two stage heatingOne or two stage coolingOptional economizerRemote space temperature sensorLocal temperature setback mode based on optional built-in motion sensorDehumidification on models with humidity sensor Heat Pump Units AppStats for the control of heat pump units are available with inputs, outputs, and sequences of operation for the following functions. Two stages of heat and two stages of cooling plus auxiliary heatOptional economizerDehumidification-in models with auxiliary heat and a humidity sensorLocal temperature setback mode based on optional built-in motion sensorAutomatic or manual fan control
- Analog Inputs : 3
- Application : RTU
- BACnet Profile : Application Specific Controller
- Brand : KMC Controls
- Color : White
- Connectivity : MS/TP
- Cooling Control : 1 Stage, 2 Stage, Modulating
- Dehumidification Control : Yes
- Economizer Control : Yes
- Fan Control : Constant
- Heating Control : 1 Stage, 2 Stage, Modulating
- Points : 000, 1
- Relay Outputs : 6
- Sensor Type : Humidity, Temperature
