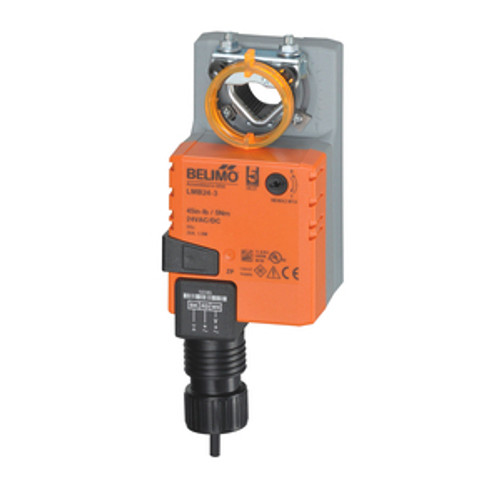

Ball Valve (VSS), 1/2", 2-way, Cv 15 Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating pointActuator fitted
- Pattern : 2-way
- Cv : 15
- Body Pressure Rating : 2000 psig WOG
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 1.5 W
- Power Consumption (Holding) : 0.2 W
- Power Consumption For Wire Sizing : 2.5 VA
- Control Type : Floating/3-point
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
