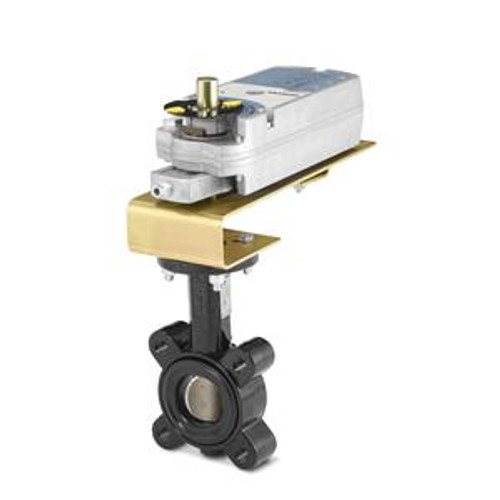

B205FC-GIB161.3U - Standard Temp Commercial Butterfly Valve Assembly, 2-way, 5-inch, 175 psi, Non-Spring Return, Normally Closed, 24 Vac, 0-10 Vdc
- Valve Size : 5 in
- Flow Coefficient, Cv : 428
- Valve Type : Two-way
- Valve Body Style : Rotary-Butterfly
- Port Configuration : 2-Way Normally closed
- End Connection : Lug
- Trim Material : Stainless Steel
- Butterfly Disc : Full Cut Disc
- Butterfly Heater : NO
- Medium : Water , Water with anti-freeze
- Max GPM : 1838 gpm
- Pressure Class : ANSI 125
- High temperature : NO
- Max. Inlet Pressure (absolute), Liquid : 250 psi
- Medium temperature : -20…250 ºF
- Close-off Pressure : 175 psi
- Valve Actuator Type : Electronic
- Control Signal : 0...10 Vdc
- Fail Safe : No
- Supply Voltage : 24 VAC
- Auxiliary Switch : No
- Standard : NEMA 2
