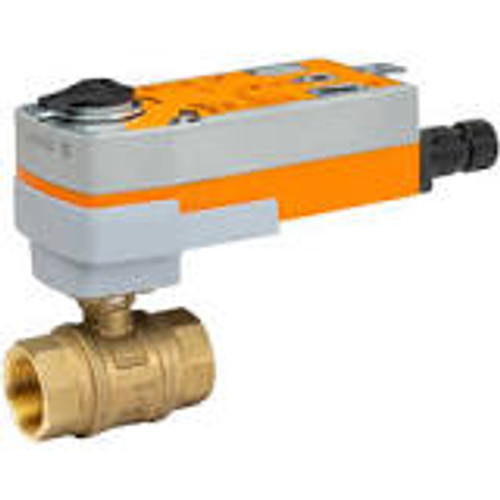

Potable water valve, 2-way, DN 40, Internal thread, ps, Fluid temperature -4...212°F [-20...100°C]Valve Actuator, Spring return, AC/DC 24 V, On/Off, 2x SPDTActuator fitted
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 7.5 VA
- Auxiliary Switches : 2x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Pattern : 2-way
- Cv : 144
- Potable water certificate : NSF/ANSI 61 ; NSF/ANSI 372
- Fluid : Potable water
- Flow temperature : -4...212°F [-20...100°C]
- Body Pressure Rating : 600 psi CWP
- Differential pressure Δpmax : 25 psi
- End Fitting : Internal thread
- Valve Size : 1.5" [40]
