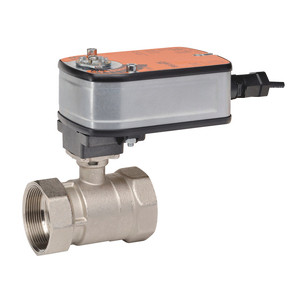

Characterized Control Valve (CCV), 1/2", 2-way, Cv 16 Valve Actuator, Spring return, AC/DC 24 V, On/Off, 1x SPDTActuator fitted
- Pattern : 2-way
- Cv : 16
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 7 VA
- Auxiliary Switches : 1x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
