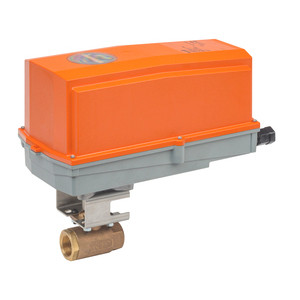

Ball Valve (VS), 1", 2-way, Cv 43 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminalsActuator fitted
- Pattern : 2-way
- Cv : 43
- Body Pressure Rating : 600 psig WOG psi
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1" [25]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 8 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 11 VA
- Control Type : Floating/3-point
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
