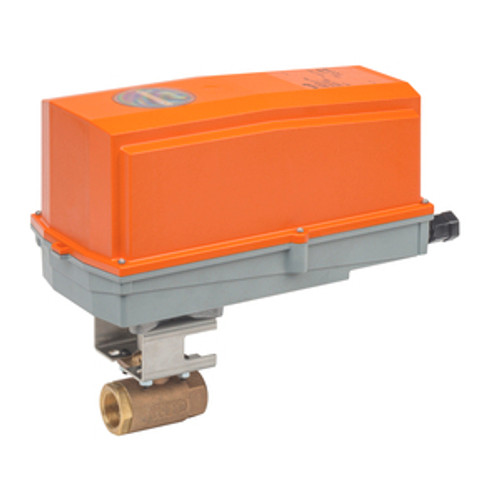

B225VS+GRCX120-SR-T N4

$1,304.13
(No reviews yet) Write a Review
SKU:
B225VS+GRCX120-SR-T N4
Adding to cart… The item has been added
HYDRAMOTOR ACTUATOR
Pattern :
2-way
Cv :
68
Fluid :
Chilled or hot water, up to 60% glycol, steam
Body Pressure Rating :
600 psig WOG psi
Flow characteristic {Tools} :
Modified equal percentage
End Fitting :
Internal thread
Trim :
Stainless steel
Valve Size :
1" [25]
Voltage AC/DC :
AC 100...240 V
Power Consumption (Running) :
6 W
Power Consumption (Holding) :
2 W
Control Type :
DC 2...10 V
Protection category :
IP66/67
Degree Of Protection NEMA :
NEMA 4X
Enclosure Type :
UL Enclosure Type 4X
PDF_1 :
https://www.belimo.com/mam/general-documents/datasheets-assembly/en-us/belimo_B225VS_GRCX120-SR-T_N4_assembly_en-us.pdf
PDF_2 :
https://www.belimo.com/mam/general-documents/datasheets/en-us/belimo_N4_Heater_Add-on_24V_-H_datasheet_en-us.pdf
PDF_3 :
https://www.belimo.com/mam/general-documents/installation-instructions/belimo_Ball-Valve-B2-VS-B2-VSS_installation-instructions_en-us.pdf
PDF_4 :
https://www.belimo.com/mam/americas/marketing_communication/master_format/belimo_ball-valves_guide-specifications_en-us.docx
PDF_5 :
https://www.belimo.com/mam/americas/technical_documents/Tech%20docs/belimo_ball-valve_technical-documentation_en-us.pdf
PDF_6 :
https://www.belimo.com/mam/americas/technical_documents/Support%20material/belimo_electronic-valve-application_guide_en-us.pdf
PDF_7 :
https://www.belimo.com/mam/americas/technical_documents/Support%20material/belimo_electronic-valve-sizing_selection_en-us.pdf
