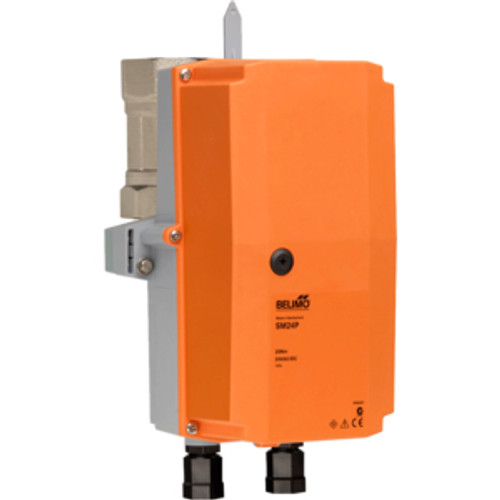

Characterized Control Valve (CCV), 1 1/2", 2-way, Cv 29 Valve Actuator, Spring return, AC/DC 24 V, MFT/programmable, NEMA 4XActuator fitted
- Pattern : 2-way
- Cv : 29
- Body Pressure Rating : 400 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1.5" [40]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 10 VA
- Control Type : MFT/Programmable
- Protection category : IP66
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
