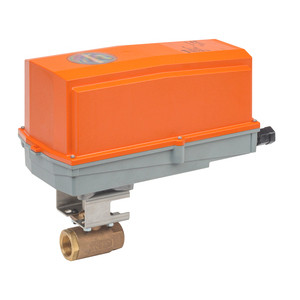

HYDRAMOTOR ACTUATOR
- Angle of Rotation : 90
- Close-off Pressure : 600 psi
- Controllable Flow Range : 90° rotation
- Cv : 84
- End Fitting : Internal thread
- Pattern : 2-way
- Pressure Independent : NO
- Trim : Stainless steel
- Valve Size : 1.5" [40]
- Actuator Type : Non fail-safe
- Control Type : Floating/3-point
- Degree of Protection : IP66/67, NEMA 4X, UL Enclosure Type 4X
- Electrical Connection : terminals
- Manual Override : Under cover
- Power Consumption (Holding) : 2 W
- Power Consumption (Running) : 4 W
- Running Time (Motor) : 150 s, constant, independent of load
- Voltage AC/DC : AC/DC 24 V
