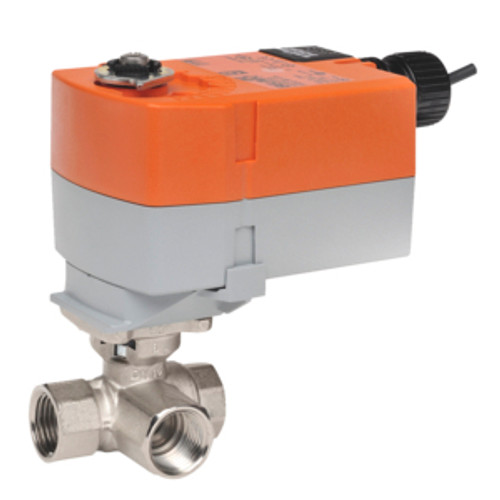

Characterized Control Valve (CCV), 1/2", 3-way, Cv 0.8 ConfigurableValve Actuator, Spring return, AC 100...240 V, On/OffActuator fitted
- Pattern : 3-way
- Cv : 0.8
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1.3 W
- Power Consumption For Wire Sizing : 5 VA
- Control Type : On/Off
- Protection category : IP42
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
