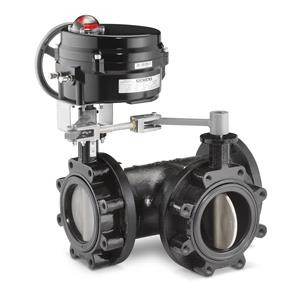

B312FA-HA266.13K - High Temp Industrial Butterfly Valve Assembly, 3-way, 12-inch, 175 psi, 120 Vac, 0-10 Vdc, Heater, Configuration A
- Valve Size : 12 in
- Flow Coefficient, Cv : 2563
- Valve Type : Three-way
- Valve Body Style : Rotary-Butterfly
- Port Configuration : 3-Way
- End Connection : Lug
- Trim Material : Stainless Steel
- Butterfly Disc : Full Cut Disc
- Configuration details : A
- Butterfly Heater : YES
- Medium : Water , Water with anti-freeze
- Max GPM : 10584 gpm
- Pressure Class : ANSI 125
- High temperature : YES
- Max. Inlet Pressure (absolute), Liquid : 250 psi
- Medium temperature : -20…250 ºF
- Close-off Pressure : 175 psi
- Valve Actuator Type : Electronic
- Fail Safe : No
- Supply Voltage : 120 VAC
- Auxiliary Switch : Yes
- Standard : NEMA 4
