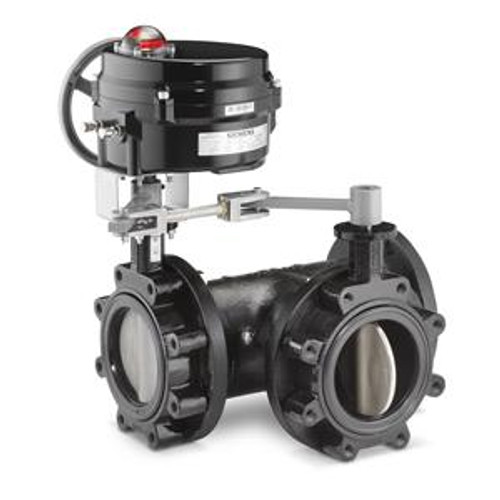

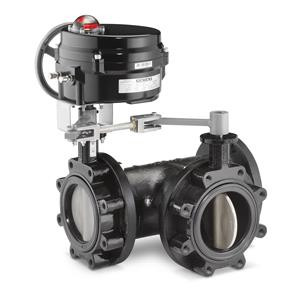

B316FD-SA226.13K

Valve Size :

16 in

Flow Coefficient, Cv :

4483

Valve Type :

Three-way

Valve Body Style :

Rotary-Butterfly

Port Configuration :

3-Way

End Connection :

Lug

Material, valve body :

Cast Iron

Trim Material :

Stainless Steel

Butterfly Disc :

Full Cut Disc

Configuration details :

D

Butterfly Heater :

YES

Flow Characteristic :

Modified Equal-percentage

Medium :

Water , Water with anti-freeze

Max GPM :

18816 gpm

Pressure Class :

ANSI 125

High temperature :

NO

Max. Inlet Pressure (absolute), Liquid :

250 psi

Max. Differential Pressure, Liquid :

29 psi

Medium temperature :

-20…250 ºF

Close-off Pressure :

150 psi

Valve Actuator Type :

Electronic

Control Signal :

2-position

Fail Safe :

No

Supply Voltage :

120 VAC

Auxiliary switch :

2

Auxiliary Switch :

Yes

Standard :

NEMA 4

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11775657_A-Series%2520Electric%2520Actuator%2520Technical%2520Specification_en.pdf&EXT=.pdf&SID=A6V11775657&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11858954_Resilient%2520Seat%2520Butterfly%2520Valves%2520Technical%2520Instruct_en.pdf&EXT=.pdf&SID=A6V11858954&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11858963_Resilient%2520Seat%2520Butterfly%2520Valves%2520Technical%2520Specific_en.pdf&EXT=.pdf&SID=A6V11858963&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V11937852_A%2520Series%2520Industrial%2520Electric%2520Actuator%2520Technical%2520In_en.pdf&EXT=.pdf&SID=A6V11937852&KEY=3&DTP=Data+Sheet+for+Product
