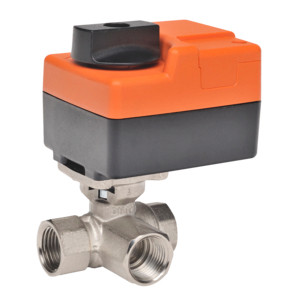

B317+TR24-SR/300 US

$336.85
(No reviews yet) Write a Review
SKU:
B317+TR24-SR/300 US
Adding to cart… The item has been added
Pattern :
3-way
Cv :
4.7
Fluid :
Chilled or hot water, up to 60% glycol
Body Pressure Rating :
600 psi
Flow characteristic {Tools} :
Equal percentage
End Fitting :
Internal thread
Trim :
Stainless steel
Valve Size :
0.75" [20]
Voltage AC/DC :
AC/DC 24 V
Power Consumption (Running) :
0.5 W
Power Consumption For Wire Sizing :
1 VA
Control Type :
DC 2...10 V
Protection category :
IP40
Degree Of Protection NEMA :
NEMA 1
Enclosure Type :
UL Enclosure Type 1
PDF_1 :
https://www.belimo.com/mam/general-documents/datasheets-assembly/en-us/belimo_B317_TR24-SR_300_US_assembly_en-us.pdf
PDF_2 :
https://www.belimo.com/mam/general-documents/installation-instructions/belimo_CCV_installation-instructions_en-us.pdf
PDF_3 :
https://www.belimo.com/mam/americas/marketing_communication/master_format/belimo_ball-valves_guide-specifications_en-us.docx
PDF_4 :
https://www.belimo.com/mam/americas/technical_documents/Tech%20docs/belimo_ccv-technical-documentation_en-us.pdf
PDF_5 :
https://www.belimo.com/mam/americas/technical_documents/Support%20material/belimo_electronic-valve-application_guide_en-us.pdf
PDF_6 :
https://www.belimo.com/mam/americas/technical_documents/Support%20material/belimo_electronic-valve-sizing_selection_en-us.pdf
