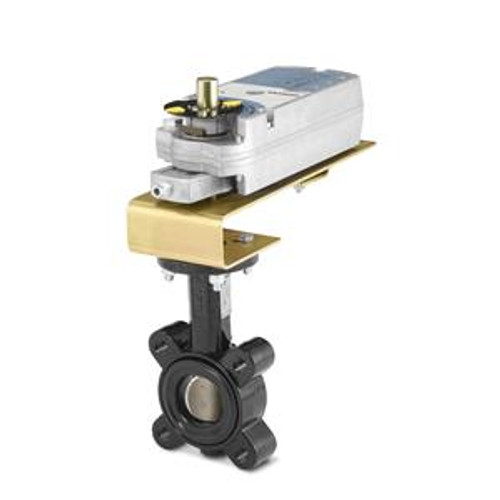

B325FC-GCA126.3U - Standard Temp Commercial Butterfly Valve Assembly, 3-way, Configuration C, 2.5-inch, 24 Vac, 2 position, with Switches, Spring Return, 175 psi
- Valve Size : 2.5 in
- Flow Coefficient, Cv : 282
- Valve Type : Three-way
- Valve Body Style : Rotary-Butterfly
- Port Configuration : 3-Way
- End Connection : Lug
- Trim Material : Stainless Steel
- Butterfly Disc : Full Cut Disc
- Configuration details : C
- Butterfly Heater : NO
- Medium : Water , Water with anti-freeze
- Max GPM : 459 gpm
- Pressure Class : ANSI 125
- High temperature : NO
- Max. Inlet Pressure (absolute), Liquid : 250 psi
- Medium temperature : -20…250 ºF
- Close-off Pressure : 175 psi
- Valve Actuator Type : Electronic
- Control Signal : 2-position
- Fail Safe : Yes
- Supply Voltage : 24 VAC
- Auxiliary Switch : Yes
- Standard : NEMA 2
