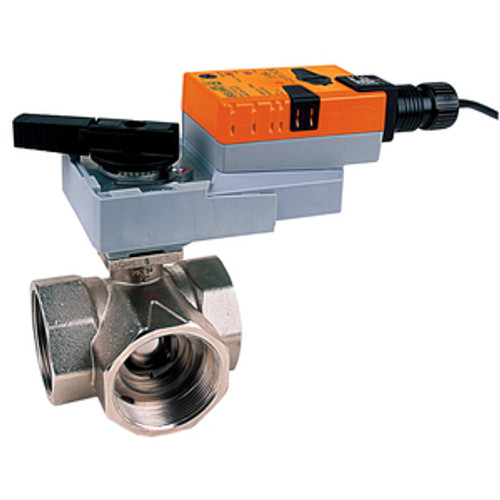

Characterized Control Valve (CCV), 2", 3-way, Cv 37 Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, terminals, ModulatingActuator fitted
- Pattern : 3-way
- Cv : 37
- Body Pressure Rating : 400 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 2" [50]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 0.4 W
- Power Consumption For Wire Sizing : 5 VA
- Control Type : DC 2...10 V
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
