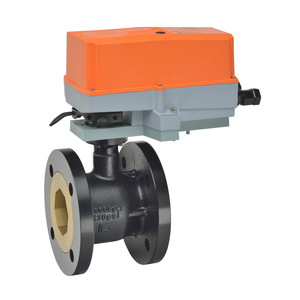

Characterized Control Valve (CCV), 6", 2-way, ANSI Class 250, Cv 400 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminalsActuator fitted
- ANSI Class : 250
- Pattern : 2-way
- Cv : 400
- Body Pressure Rating : ANSI Class 250, raised-face
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 6" [150]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 4 W
- Power Consumption (Holding) : 2 W
- Power Consumption For Wire Sizing : 11 VA
- Control Type : Floating/3-point
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
