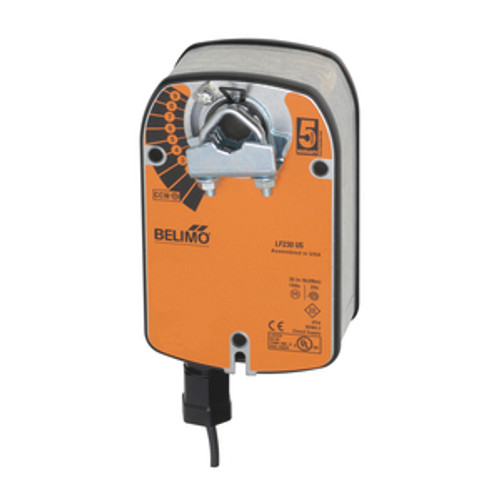

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 230 V, On/Off
- Voltage AC/DC : AC\xa0230\xa0V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 7 VA
- Torque : 35\xa0in-lb [4\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 75\xa0s / 90°
- Running Time (Fail-safe) : <25\xa0s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
