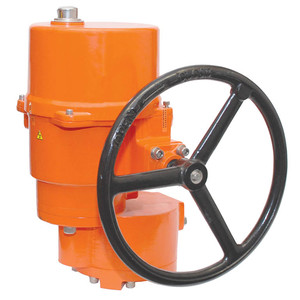

Valve Actuator, Non fail-safe, AC 120 V, On/Off, Floating point, 2 x SPDT
- Voltage AC/DC : AC\xa0120\xa0V
- Power Consumption For Wire Sizing : 384 VA
- Auxiliary Switches : 2x SPDT
- Torque : 2500\xa0Nm
- Control Type : Floating/3-point
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : Hand wheel
- Angle of Rotation : 90
- Running Time (Motor) : 62\xa0s
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA\xa04X
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa04X
