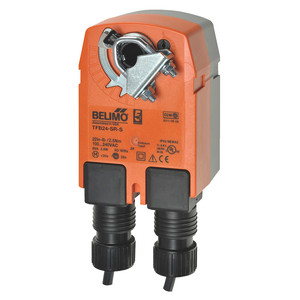

Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC/DC 24 V, modulating, 1 x SPDT, 2...10 V
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1 W
- Power Consumption For Wire Sizing : 4 VA
- Auxiliary Switches : 1x SPDT
- Torque : 22\xa0in-lb [2.5\xa0Nm]
- Control Type : DC\xa02...10\xa0V
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 95\xa0s /
- Running Time (Fail-safe) : <25\xa0s
- Protection category : IP42
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
