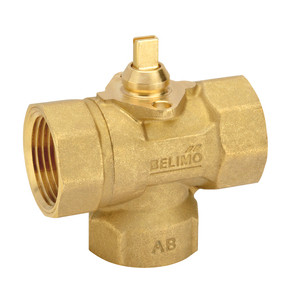

ZoneTight™ (QCV), 3/4", 3-way, Cv 4.6 Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating pointActuator fitted
- Pattern : 3-way
- Cv : 4.6
- Body Pressure Rating : 360 psi
- Differential pressure Δpmax : 40 kPa
- Flow characteristic {Tools} : Linear
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 0.3 W
- Power Consumption (Holding) : 0.2 W
- Power Consumption For Wire Sizing : 0.6 VA
- Control Type : Floating/3-point
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
