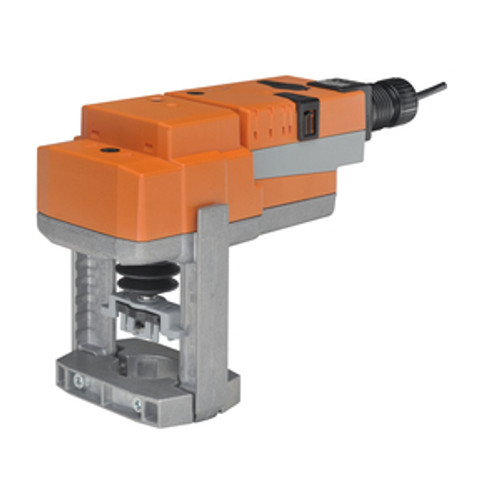

1 1/2X1 1/4 2NO BRASS 15.4 AC
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 6 VA
- Force : 500 N [115 lbf]
- Control Type : Floating/3-point
- Direction Of Motion Motor : selectable with switch
- Direction of Rotation (Fail-Safe) : Reversible with switch
- Manual Override : 4 mm hex crank (shipped w/actuator)
- Stroke : 0.6" [15 mm] LV, 3/4" [20 mm] SV
- Running Time (Motor) : 90 s /
- Running Time range (Motor) : 90 or 150 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
