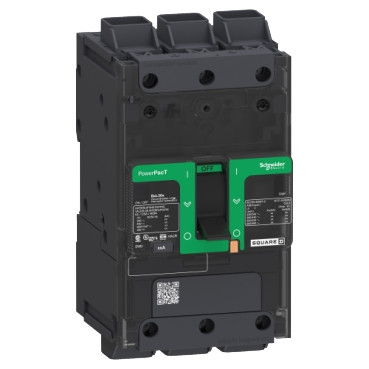

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range : PowerPact
- Product name : PowerPact B
- Device short name : BJ 070
- Product or Component Type : Circuit breaker
- Device Application : Distribution
- Line Rated Current : 70 A
- Number of Poles : 3P
- control type : Toggle
- Breaking capacity code : J
- [Ue] rated operational voltage : 690 V AC 50/60 Hz UL 489
- Network Frequency : 50/60 Hz
- [Uimp] rated impulse withstand voltage : 8 kV IEC 60947-2
- Trip unit technology : Thermal-magnetic
- Continuous current rating : 80 %
- [Ui] rated insulation voltage : 800 V IEC 60947-2
- Suitability for isolation : Yes IEC 60947-2
- utilisation category : Category A
- Mechanical durability : 20000 cycles IEC 947-1 Annex K ed 5.2
- Electrical durability : 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Connection pitch : 1.06 in (27 mm)
- Local signalling : Presence of auxiliary contacts flag green)
- Mounting mode : Clip-on 35 x 15 mm symmetrical DIN rail), By screws plate)
- Electrical connection : Everlink lug, line, Everlink lug, load
- Power wire stripping length : 0.79 in (20 mm)
- Color : Gray RAL 7016)
- 9 mm pitches : 9
- Height : 5.39 in (137 mm)
- Width : 3.19 in (81 mm)
- Depth : 3.15 in (80 mm)
- Net Weight : 2.37 lb(US) (1.074 kg)
- Quantity per Set : Set of 1
- circuit breaker application : HACR rated
- Quality labels : CE
- Product certifications : UL, IEC, CCC, EAC, CSA, NOM
- IP degree of protection : Front cover IP40 IEC 60529
- IK degree of protection : IK07 conforming to IEC 62262
- Pollution degree : 3 IEC 60947-1
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage : -58…185 °F (-50…85 °C)
- Operating altitude : < 6561.68 ft (2000 m) without derating, 5000 m with derating
