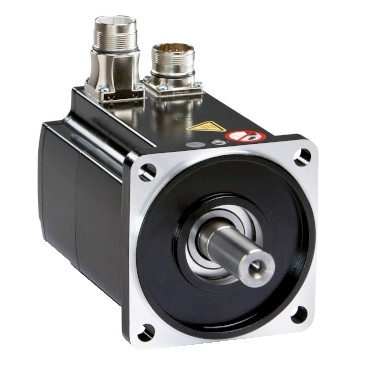

MOTOR 205MM IP54 KEY ENC
- Warranty : 18 months |PDF1
- Product or Component Type : Servo motor
- Device short name : BMH
- Maximum mechanical speed : 3800 rpm
- Nominal output power : 5400 W LXM32.D72N4 24 A, 400 V, three phase, 5400 W LXM32.D72N4 24 A, 480 V, three phase
- Product compatibility : LXM32.D72N4 400...480 V three phase
- Shaft end : Keyed
- IP Degree of Protection : IP54 standard
- Speed feedback resolution : 131072 points/turn
- Holding brake : Without
- Mounting Support : International standard flange
- Electrical Connection : Rotatable right-angled connectors
- Range Compatibility : Lexium 32
- [Us] rated supply voltage : 480 V
- Phase : Three phase
- Continuous stall current : 21.5 A
- Continuous power : 6.8 W
- Maximum current Irms : 72 A LXM32.D72N4
- Maximum permanent current : 78.1 A
- Second shaft : Without second shaft end
- Shaft diameter : 1.50 in (38 mm)
- Shaft length : 3.15 in (80 mm)
- Key width : 2.76 in (70 mm)
- Feedback type : Single turn SinCos Hiperface
- Motor flange size : 8.07 in (205 mm)
- Number of motor stacks : 1
- Back emf constant : 104 V/krpm 248 °F (120 °C)
- Number of motor poles : 10
- Rotor inertia : 71.4 kg.cm²
- Stator resistance : 0.3 Ohm 68 °F (20 °C)
- Stator inductance : 5.9 mH 68 °F (20 °C)
- Stator electrical time constant : 19.7 ms 68 °F (20 °C)
- Maximum radial force Fr : 3730 N 1000 rpm, 2960 N 2000 rpm, 2580 N 3000 rpm
- Maximum axial force Fa : 0.2 x Fr
- Type of cooling : Natural convection
- Length : 12.64 in (321 mm)
- Centring collar diameter : 7.09 in (180 mm)
- Centring collar depth : 0.16 in (4 mm)
- Number of mounting holes : 4
- Mounting holes diameter : 0.55 in (14 mm)
- Circle diameter of the mounting holes : 8.46 in (215 mm)
- Net Weight : 72.75 lb(US) (33 kg)
- Category : US1PC5318282
- Discount Schedule : PC53
- GTIN : 3606485201696
- Returnability : Yes
- Country of origin : DE
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 14.17 in (36.0 cm)
- Package 1 Width : 12.20 in (31.0 cm)
- Package 1 Length : 22.83 in (58.0 cm)
- Package 1 Weight : 85.98 lb(US) (39.0 kg)
- Warranty : 18 months
