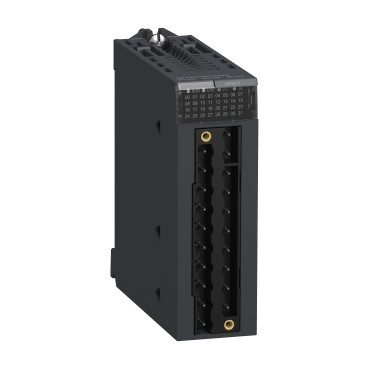

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
- Range of Product : Modicon X80
- Product or Component Type : Analog output module
- Electrical connection : 20 ways 1 connector
- Isolation between channels : Isolated
- Measurement error : <= 0.2 % of full scale 0...60 °C, 0.1 % of full scale 25 °C
- Temperature drift : 45 ppm/°C +/- 10 V, 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
- Minimum crosstalk attenuation : 80 dB
- Common mode rejection : 100 dB
- Load impedance ohmic : >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA
- Output level : High level
- analogue output number : 4
- Analogue output type : Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V
- Analogue output resolution : 15 bits + sign
- supply : Internal power supply via rack
- Conversion time : <= 1 ms
- Maximum conversion value : 0...21 mA 0...20 mA, 0...21 mA 4...20 mA, +/- 10.5 V +/- 10 V
- Fallback mode : Configurable, Predefined
- MTBF reliability : 1000000 H
- Operating altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Net Weight : 0.33 lb(US) (0.15 kg)
- Power consumption in W : 3 W 24 V DC typical, 3.6 W 24 V DC maximum, 0.45 W 3.3 V DC typical, 0.51 W 3.3 V DC maximum
- Current consumption : 150 mA 3.3 V DC, 140 mA 24 V DC
- Vibration resistance : 3 gn
- Shock resistance : 30 gn
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Relative humidity : 5…95 % 131 °F (55 °C) without condensation
- IP Degree of Protection : IP20
- Product Certifications : CE, RCM, CSA, EAC, Merchant Navy, UL
- Category : US1PC3418160
- Discount Schedule : PC34
- GTIN : 3595864081571
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.17 in (5.500 cm)
- Package 1 Width : 4.33 in (11.000 cm)
- Package 1 Length : 4.53 in (11.500 cm)
- Package 1 Weight : 7.44 oz (211.000 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 15
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 7.72 lb(US) (3.500 kg)
- Warranty : 18 months
