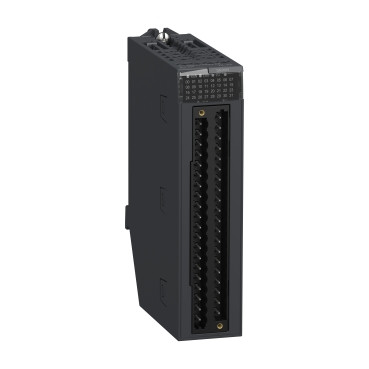

X80 16CH ISOL TRIAC 24-240VAC
- Range of Product : Modicon X80
- Product or Component Type : Discrete output module
- Discrete output number : 16 EN/IEC 61131-2
- Discrete output type : Triac
- Discrete output voltage : 24...240 V 20...264 V AC
- discrete output current : 3 A
- Network Frequency : 50/60 Hz
- network frequency limits : 47…63 Hz
- Sensor power supply : 20...264 V
- Current per channel : 3 A 104 °F (40 °C), 1.2 A 140 °F (60 °C)
- Maximum current per module : 10 A 104 °F (40 °C), 4 A 140 °F (60 °C)
- Maximum leakage current : 1 mA at state 0 24 V, 1 mA at state 0 48 V, 2 mA at state 0 115 V, 2.5 mA at state 0 240 V
- Maximum voltage drop : <1.55 V at state 1
- Insulation resistance : > 10 MOhm 500 V DC
- Power dissipation in W : 1.45 W
- Response time on output : <= 10 ms resistive activation, <= 10 ms resistive deactivation
- Typical current consumption : 61 mA 3.3 V DC, 50 mA 24 V DC
- MTBF reliability : 500000 H
- Protection type : 1 external fuse 4 A fast blow
- Output overload protection : With varistor
- Inrush current : 30 A
- Maximum current per output common : 4 A
- Output current limits : 0.005…10 A
- Net Weight : 0.58 lb(US) (0.264 kg)
- IP Degree of Protection : IP20
- Dielectric strength : 3000 V AC 50/60 Hz 1 min
- Vibration resistance : 3 gn
- Shock resistance : 30 gn
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Relative humidity : 0…95 % 32…140 °F (0…60 °C) without condensation
- Operating altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Category : US1PC3418160
- Discount Schedule : PC34
- GTIN : 3606489485047
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.17 in (5.500 cm)
- Package 1 Width : 7.09 in (18.000 cm)
- Package 1 Length : 10.24 in (26.000 cm)
- Package 1 Weight : 14.29 oz (405.000 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 8
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 8.16 lb(US) (3.700 kg)
