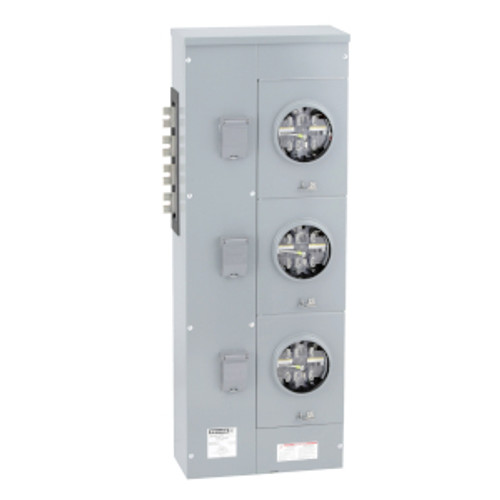

Branch unit, EZ Meter-Pak, 225A, 3 sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
- [Ue] rated operational voltage : 208Y/120 V AC
- [Ue] rated operational voltage : 240/120 V delta AC
- Brand : Square D
- bus rated current : 1200 A
- By Schneider : Yes
- bypass type : Lever bypass
- Carbon footprint (kg CO2 eq, Total Life cycle) : 846
- Circularity Profile : No need of specific recycling operations
- Depth : 9.44 in (239.78 mm)
- Device Mounting : Surface
- Enclosure Material : Steel
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 1200 a
- Global Keywords : 1200 amp
- Global Keywords : 208Y / 120 VAC
- Global Keywords : 225 A
- Global Keywords : 225 amp
- Global Keywords : 3 positions
- Global Keywords : Aluminium
- Global Keywords : Bus bar
- Global Keywords : Copper
- Global Keywords : EZ Meter Pack
- Global warming ; Total life cycle? : 846 kg CO2 eq.
- Height : 53.06 in (1347.72 mm)
- Line Rated Current : 225 A
- Manufacturer : Square D
- Material : Aluminium/copper: busbar
- meter socket type : Ringless
- NEMA Protection Rating : NEMA 3R
- number of jaws : 7 with jaw release
- number of meter sockets : 3
- Number of Units in Package 2 : 6
- Package 2 Height : 40.00 in (101.600 cm)
- Package 2 Length : 60.00 in (152.400 cm)
- Package 2 Weight : 1020.0004 lb(US) (462.664 kg)
- Package 2 width : 42.00 in (106.680 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Phase : 3 phase in
- Phase : 3 phase out
- Product Certifications : UL Listed
- Product Or Component Type : Meter Center Branch Unit
- Take-back : No
- Unit Type of Package 2 : PAL
- UNSPSC Classification v19 : 39121102
- UNSPSC Classification v23 : 39121102
- Volume of Package 2 : 1651816.051 cm3
- Warranty : 18 months
- Width : 19.44 in (493.78 mm)
- wiring configuration : 4-wire
