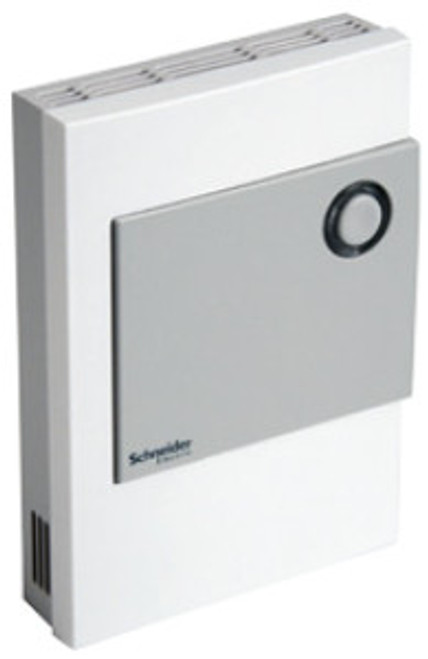

ROOM CO2 & HUM TRANS I/NET
- Application : Wall
- Application Zone : Living Space
- CO2 Measurement Accuracy : +/-2% of measured value +/-1.5% of measurement range
- CO2 Measurement Range : 0-2000 ppm
- CO2 Measurement Repeatability : +/-20 ppm +/-1% of measured value
- Color : Cloud Gray and White
- Dimension Depth : 24 mm (0.9 ")
- Dimension Height : 117 mm (4.6 ")
- Dimension Width : 82 mm (3.2 ")
- Enclosure Material : ABS plastic
- Humidity Measurement Accuracy : +/-2%
- Humidity Measurement Range : 0 to 100% RH, non-condensing
- Measurement Type : CO2, Humidity, Temperature
- Model : SCR210B-H
- Mounting : Wall
- Operating Humidity : 0 to 95% RH, non-condensing
- Operating Temperature : 0 to 50 C (32 to 122 F)
- Output Specifications : 0-10 VDC, 0-5 VDC, 4-20 mA
- Product Certifications : CE, UL
- Product Type : Sensor
- Range : SCR
- Response Time : CO2: Less than 60 seconds for 90% step change
- Supply Voltage AC Nominal : 24 VAC
- Supply Voltage DC Nominal : 20-30 VDC
- Temperature Measurement Accuracy : +/-0.3 C (+/-0.6 F)
- Temperature Measurement Range : 10 to 35 C (50 to 95 F)
- Temperature Sensor Type : 10k Ohm Type 2 Thermistor
- Warranty : 2 years
