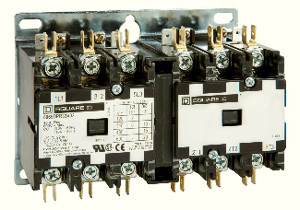

Class 8965 Type DPR Reversing/Hoist Contactor|25A|600 VAC|Angled
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- Brand : Square D
- By Schneider : Yes
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 3 pole
- Global Keywords : 30 Amp
- Global Keywords : 3-pole
- Global Keywords : Class 8911
- Global Keywords : DPR hoist
- Global Keywords : DPR reversing
- Global Keywords : Reversing hoist
- Line Rated Current : 30 A
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 10 hp 230 V AC, 3 phase
- Maximum Horse Power Rating : 15 hp 460 V AC, 3 phase
- Maximum Horse Power Rating : 15 hp 575 V AC, 3 phase
- Maximum Horse Power Rating : 2 hp 115 V AC, 1 phase
- Maximum Horse Power Rating : 5 hp 230 V AC, 1 phase
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 3 phase
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Reversing Hoist Contactor
- Take-back : No
- Type Of Network : 3P
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Warranty : 18 months
