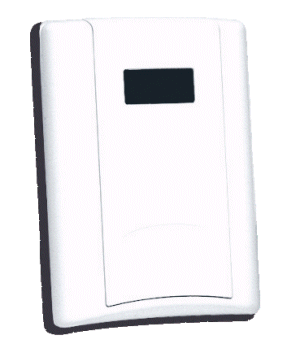

NLO-CO2 SENSOR RH TEMP LCD WAL
- Application : Wall
- Application Zone : Living Space
- BAS Compatibility : TAC I/NET
- By Schneider : Yes
- California Residents : WARNING:Cancer and Reproductive Harm -www.P65Warnings.ca.gov
- CO2 Measurement Accuracy : +/-30 ppm +/-2% of measured value
- CO2 Measurement Range : 0-2000 ppm, 0-5000 ppm
- CO2 Measurement Repeatability : +/-20 ppm +/-1% of measured value
- CO2 Measurement Resolution : 1 ppm
- CO2 Sensor Type : Non-dispersive infrared (NDIR)
- Color : Cloud White
- Combination Sensor : Yes
- Dimension Depth : 30 mm (1.2 ")
- Dimension Height : 122 mm (4.8 ")
- Dimension Width : 89 mm (3.5 ")
- Display Size : 30.5 mm x 14 mm (1.2 " x 0.6 ")
- Display Type : LCD
- Electrical Wiring Size : 24-18 AWG
- Enclosure Material : ABS plastic
- Humidity Measurement Accuracy : +/-2%
- Humidity Measurement Range : 0 to 100% RH, non-condensing
- Humidity Measurement Resolution : 0.1% RH, non-condensing
- Measurement Type : CO2, Humidity, Temperature
- Mounting : Wall
- NIST : No
- Operating Humidity : 0 to 95% RH, non-condensing
- Operating Temperature : 10 to 35 C (50 to 95 F)
- Output Specifications : 0-10 VDC, 0-5 VDC, 4-20 mA
- Override : No
- Product Certifications : CE
- Product Type : Sensor
- Range : CWL
- Response Time : CO2: Less than 60 seconds for 90% step change
- Sensor Signal : 10K Ohm Type 2
- Setpoint : No
- Supply Voltage AC Nominal : 24 VAC
- Supply Voltage DC Nominal : 20-30 VDC
- Temperature Measurement Accuracy : +/-1.0 C (+/-1.8 F)
- Temperature Measurement Range : -50 to 150 C (-58 to 302 F)
- Temperature Sensor Type : 10k Ohm Type 2 Thermistor
- Transmitter : Yes
- Warranty : 5 years
