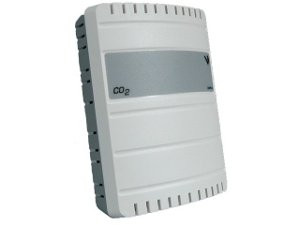

NLO-CO2 WALL VAL 2X V OUT NO R
- Application : Wall
- Application Zone : Living Space
- CO2 Measurement Accuracy : +/-40 ppm +/-5.5% of measured value
- CO2 Measurement Range : 0-2000 ppm
- CO2 Measurement Repeatability : +/-30 ppm +/-4.5% of measured value
- CO2 Sensor Type : Non-dispersive infrared (NDIR)
- Color : Cloud White
- Dimension Depth : 116 mm (1.4 ")
- Dimension Height : 116 mm (4.6 ")
- Dimension Width : 84 mm (3.3 ")
- Electrical Wiring Size : 24-14 AWG
- Enclosure Material : ABS plastic
- Measurement Type : CO2, Temperature
- Mounting : Wall
- Operating Humidity : 0 to 95% RH, non-condensing
- Operating Temperature : 0 to 50 C (32 to 122 F)
- Output Specifications : 0-10 VDC, 0-3 VDC, 0-5 VDC
- Override : No
- Product Certifications : CE
- Product Type : Sensor
- Range : CWV
- Response Time : CO2: Less than 60 seconds for 90% step change
- Setpoint : No
- Supply Voltage AC Nominal : 24 VAC
- Supply Voltage DC Nominal : 20-30 VDC
- Temperature Measurement Accuracy : +/-0.2 C (+/-0.4 F)
- Temperature Measurement Range : 0 to 70 C (32 to 158 F)
- Temperature Sensor Type : 10k Ohm Type 3 Thermistor
- Warranty : 1 year
