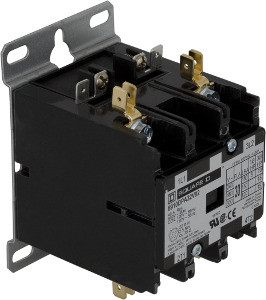

Definite Purpose Contactor:|Range of Product: DPA|Line Rated Current: 30A|Motor Power Horsepower: 2HP 115VAC, 5HP 230VAC|Number of Phases: 1-Phase|Number of Poles: 2-Pole|Control Circuit Voltage: 110 VAC 50HZ, 120 VAC 60Hz|Enclosure Rating: Open|Mounting: Panel|System Voltage: 600VAC|Locked Rotor Rated Current: 150A 460 VAC, 120A 575 VAC, 180A 277 VAC|Electrical Connection: Quick Connect Terminals, Binder Head
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- Brand : Square D
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Depth : 2.90 in (73.66 mm)
- Depth : 3.0 in (76 mm)
- Electrical Connection : Binder head
- Electrical Connection : Quick connect terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 110/120 VAC 50/60 Hz coil
- Global Keywords : 2 pole
- Global Keywords : 30A
- Global Keywords : Contactors
- Global Keywords : Definite purpose contatcor
- Global Keywords : DPA contactor
- Global Keywords : Low voltage
- Global Keywords : Nonreversing contactor
- Global Keywords : Open style device
- Global Keywords : Surface mount
- Height : 2.31 in (58.67 mm)
- Height : 2.31 in (58.70 mm)
- Line Rated Current : 30 A
- Locked Rotor Rated Current : 120 A 575 V AC
- Locked Rotor Rated Current : 150 A 460 V AC
- Locked Rotor Rated Current : 180 A 277 V AC
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 2 hp 115 V AC, 1 phase
- Maximum Horse Power Rating : 5 hp 230 V AC, 1 phase
- Net Weight : 0.97 lb(US) (0.44 kg)
- Net Weight : 0.98 lb(US) (0.44 kg)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 1 phase
- pole contact composition : 2 NO
- Product Certifications : CSA
- Product Certifications : UL Recognized
- Product Or Component Type : Definite Purpose Contactor
- Sustainable packaging : Yes
- Take-back : No
- Type Of Network : 2P
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Warranty : 18 months
- Width : 2.37 in (60.20 mm)
- Width : 2.4 in (60.2 mm)
