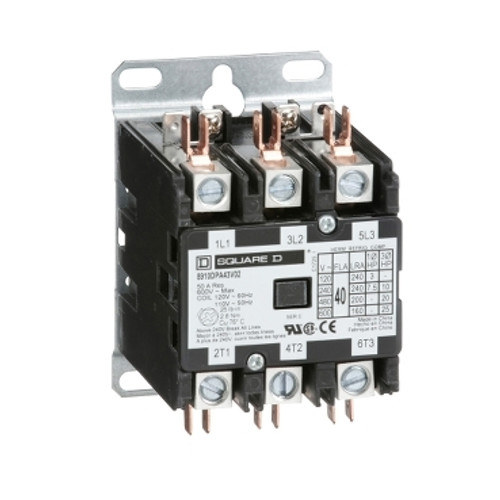

Definite Purpose Contactor:|Range of Product: DPA|Line Rated Current: 40A|Motor Power Horsepower: 3HP 115VAC, 7.5HP 230VAC, 10HP 230VAC, 20HP 460VAC, 25HP 575VAC|Number of Phases: 3-Phase|Number of Poles: 3-Pole|Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz|Enclosure Rating: Open|Mounting: Panel|System Voltage: 600VAC|Locked Rotor Rated Current: 200A 460 VAC, 160A 575 VAC, 240A 277 VAC|Electrical Connection: Quick Connect Terminals, Box Lugs
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- Brand : Square D
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Depth : 2.90 in (73.66 mm)
- Depth : 3.0 in (76 mm)
- Electrical Connection : Box lugs
- Electrical Connection : Quick connect terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 110/120 VAC 50/60 Hz coil
- Global Keywords : 3 pole
- Global Keywords : 40A
- Global Keywords : Contactors
- Global Keywords : Definite purpose contatcor
- Global Keywords : DPA contactor
- Global Keywords : Low voltage
- Global Keywords : Nonreversing contactor
- Global Keywords : Open style device
- Global Keywords : Surface mount
- Height : 2.31 in (58.67 mm)
- Height : 2.31 in (58.70 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 40 A
- Locked Rotor Rated Current : 160 A 575 V AC
- Locked Rotor Rated Current : 200 A 460 V AC
- Locked Rotor Rated Current : 240 A 277 V AC
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 10 hp 230 V AC, 3 phase
- Maximum Horse Power Rating : 20 hp 460 V AC, 3 phase
- Maximum Horse Power Rating : 25 hp 575 V AC, 3 phase
- Maximum Horse Power Rating : 3 hp 115 V AC, 1 phase
- Maximum Horse Power Rating : 7.5 hp 230 V AC, 1 phase
- Net Weight : 0.99 lb(US) (0.45 kg)
- Number of Units in Package 2 : 8
- Package 2 Height : 6.90 in (17.526 cm)
- Package 2 Length : 8.50 in (21.590 cm)
- Package 2 Weight : 8.501 lb(US) (3.856 kg)
- Package 2 width : 5.60 in (14.224 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 3 phase
- pole contact composition : 3 NO
- Product Certifications : CSA
- Product Certifications : UL Recognized
- Product Or Component Type : Definite Purpose Contactor
- Sustainable packaging : Yes
- Take-back : No
- Type Of Network : 3P
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Volume of Package 2 : 5382.167 cm3
- Warranty : 18 months
- Width : 2.37 in (60.20 mm)
- Width : 2.4 in (60.2 mm)
