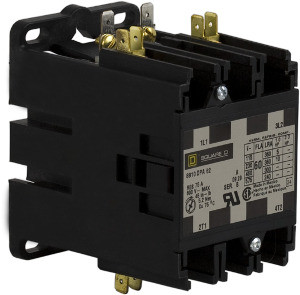

Definite Purpose Contactor:|Range of Product: DPA|Line Rated Current: 60A|Motor Power Horsepower: 5HP 115VAC, 10HP 230VAC|Number of Phases: 1-Phase|Number of Poles: 2-Pole|Control Circuit Voltage: 220 VAC 50Hz, 208-240 VAC 60Hz|Enclosure Rating: Open|Mounting: Panel|System Voltage: 600VAC|Locked Rotor Rated Current: 360A 277 VAC, 300A 460 VAC, 240A 575 VAC|Electrical Connection: Quick Connect Terminals, Box Lugs
- [Uc] control circuit voltage : 208...240 V AC 60 Hz~~
- [Uc] control circuit voltage : 220 V AC 50 Hz
- [Ue] rated operational voltage : 600 V AC
- Brand : Square D
- By Schneider : Yes
- Electrical Connection : Box lugs
- Electrical Connection : Quick connect terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 2 pole
- Global Keywords : 208/240 VAC 60 Hz coil
- Global Keywords : 60A
- Global Keywords : Contactors
- Global Keywords : Definite purpose contatcor
- Global Keywords : DPA contactor
- Global Keywords : Low voltage
- Global Keywords : Nonreversing contactor
- Global Keywords : Open style device
- Global Keywords : Surface mount
- Indivisible Sale Qty : 1
- Line Rated Current : 60 A
- Locked Rotor Rated Current : 240 A 575 V AC
- Locked Rotor Rated Current : 300 A 460 V AC
- Locked Rotor Rated Current : 360 A 277 V AC
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 10 hp 230 V AC, 1 phase
- Maximum Horse Power Rating : 5 hp 115 V AC, 1 phase
- Number of Units in Package 2 : 5
- Package 2 GTIN : 10785901080807
- Package 2 Height : 5.80 in (14.732 cm)
- Package 2 Length : 9.10 in (23.114 cm)
- Package 2 Weight : 7.180 lb(US) (3.257 kg)
- Package 2 width : 8.30 in (21.082 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 1 phase
- pole contact composition : 2 NO
- Product Certifications : CSA
- Product Certifications : UL Recognized
- Product Or Component Type : Definite Purpose Contactor
- Sustainable packaging : Yes
- Take-back : No
- Type Of Network : 2P
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Volume of Package 2 : 7178.7466747359995 cm3
- Warranty : 18 months
