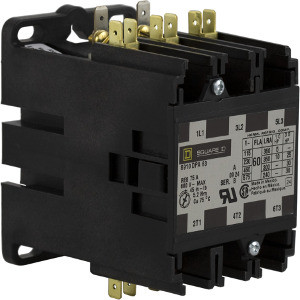

Definite Purpose Contactor:|Range of Product: DPA|Line Rated Current: 60A|Motor Power Horsepower: 5HP 115VAC, 10HP 230VAC, 30HP 460VAC, 30HP 575VAC, 25HP 230VAC|Number of Phases: 3-Phase|Number of Poles: 3-Pole|Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz|Enclosure Rating: Open|Mounting: Panel|System Voltage: 600VAC|Locked Rotor Rated Current: 360A 277 VAC, 300A 460 VAC, 240A 575 VAC|Electrical Connection: Quick Connect Terminals, Box Lugs
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- Brand : Square D
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Depth : 3.67 in (93.22 mm)
- Depth : 3.7 in (93 mm)
- Electrical Connection : Box lugs
- Electrical Connection : Quick connect terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 110/120 VAC 50/60 Hz coil
- Global Keywords : 3 pole
- Global Keywords : 60A
- Global Keywords : Contactors
- Global Keywords : Definite purpose contatcor
- Global Keywords : DPA contactor
- Global Keywords : Low voltage
- Global Keywords : Nonreversing contactor
- Global Keywords : Open style device
- Global Keywords : Surface mount
- Height : 4.1 in (105 mm)
- Height : 4.13 in (104.90 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 60 A
- Locked Rotor Rated Current : 240 A 575 V AC
- Locked Rotor Rated Current : 300 A 460 V AC
- Locked Rotor Rated Current : 360 A 277 V AC
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 10 hp 230 V AC, 1 phase
- Maximum Horse Power Rating : 25 hp 230 V AC, 3 phase
- Maximum Horse Power Rating : 30 hp 460 V AC, 3 phase
- Maximum Horse Power Rating : 30 hp 575 V AC, 3 phase
- Maximum Horse Power Rating : 5 hp 115 V AC, 1 phase
- Net Weight : 1.5 lb(US) (0.7 kg)
- Net Weight : 1.50 lb(US) (0.68 kg)
- Number of Units in Package 2 : 8
- Package 2 Height : 8.10 in (20.574 cm)
- Package 2 Length : 9.00 in (22.860 cm)
- Package 2 Weight : 12.350 lb(US) (5.602 kg)
- Package 2 width : 5.80 in (14.732 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 3 phase
- pole contact composition : 3 NO
- Product Certifications : CSA
- Product Certifications : UL Recognized
- Product Or Component Type : Definite Purpose Contactor
- SCIP Number : 9635bca0-88f5-4211-aaa3-d012e1850a41
- Sustainable packaging : Yes
- Take-back : No
- Type Of Network : 3P
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Volume of Package 2 : 6928.778 cm3
- Warranty : 18 months
- Width : 2.56 in (65.02 mm)
- Width : 2.6 in (65 mm)
