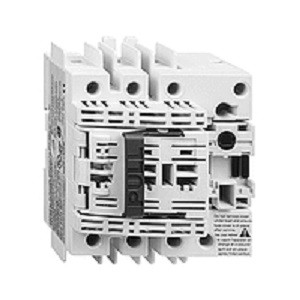

GS1DDU3

[Ie] rated operational current :

30 A~~

[Ith] conventional free air thermal current :

30 A (at 104 °F (40 °C))

[Ui] rated insulation voltage :

690 V

[Uimp] rated impulse withstand voltage :

8 kV

Application :

Protection

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Connections - Terminals :

Power circuit lugs-ring terminals 0.003…0.009 in² (2…6 mm²)

Contacts Type And Composition :

3 NO

Depth :

3.3 in (83.5 mm)

Design :

Compact

Device Short Name :

GS1 DD

Electrical Durability :

6000 cycles

Final Result for Flywheel performance tracking :

Non Flywheel

fire resistance :

1760 °F (960 °C) body IEC 60695-2-1

fuse size :

CC

fuse type :

UL

Global Keywords :

3 poles

Global Keywords :

Disconnector fuse

Global Keywords :

Fuse size CC

Global Keywords :

Fuse type UL

Global Keywords :

Rated current 30A

Global Keywords :

Switch disconnector

Global Keywords :

TeSys GS

Global Keywords :

Tesys GS1

Height :

4.6 in (116 mm)

IP Degree of Protection :

IP20 IEC 60529 with terminal cover)

Manufacturer :

Schneider Electric

Mechanical Durability :

10000 cycles

Mounting Support :

Plate

Mounting Support :

Rail

Net Weight :

1.3 lb(US) (0.6 kg)

Network Frequency :

50/60 Hz

Network Type :

AC

Network Type :

DC

Number of Units in Package 2 :

8

Number of Units in Package 3 :

64

Package 2 GTIN :

43389110179536

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

10.748 lb(US) (4.875 kg)

Package 2 width :

11.81 in (30.000 cm)

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

119.499 lb(US) (54.204 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Product Certifications :

ASEFA

Product Certifications :

LOVAG

Product Certifications :

LROS (Lloyds register of shipping)

Product Name :

TeSys GS

Product Or Component Type :

Switch-disconnector-fuse

protected poles description :

3t

Range :

TeSys

rated operational power in W :

15 kW 400 V

rated operational power in W :

18.5 kW 500 V

rated operational power in W :

25 kW 690 V

REACh free of SVHC :

Yes

short-circuit withstand :

5.5 kA

Standards :

CSA C22.2 No 5

Standards :

UL 489

Take-back :

No

Temperature Ambient Operating Range :

-4…158 °F (-20…70 °C)

Temperature Shipping and Storage Range :

-40…176 °F (-40…80 °C)

Tightening Torque :

Power circuit 26.6 lbf.in (3 N.m)

Toxic heavy metal free :

Yes

Type Of Network :

3P

type of operating handle :

Direct frontal

type of operating handle :

External frontal

Unit Type of Package 2 :

S03

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

39122233

UNSPSC Classification v23 :

39122233

Volume of Package 2 :

36000.000 cm3

Volume of Package 3 :

360000.000 cm3

Warranty :

18 months

Width :

3.8 in (97 mm)
