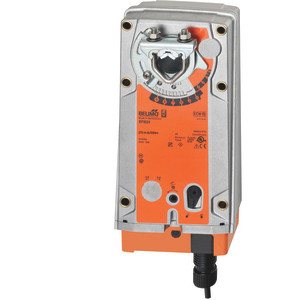

Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 9.5 W
- Power Consumption (Holding) : 4.5 W
- Power Consumption For Wire Sizing : 16 VA
- Torque : 270\xa0in-lb [30\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 95
- Running Time (Motor) : 75\xa0s / 90°
- Running Time (Fail-safe) : <20 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
