EMKA934553L202024X

Product or Component Type :

Energy meter kit

Poles description :

3P + N, 1P + N, 3P

Type of measurement :

Active and reactive energy, Active and reactive power, Current, Voltage

Metering type :

Active, reactive, apparent energy (signed, four quadrant)

Device Application :

Sub billing, Multi-tariff, Partial meter

Rated voltage :

100…277 V +/- 20 %, 173…480 V +/- 20 %

Network Frequency :

60 Hz, 50 Hz

Technology Type :

Electronic

Display Type :

LCD display

current transformer type :

Solid core

Line Rated Current :

200 A

Measurement accuracy :

+/- 0.5 % 5...120 %

enclosure mounting :

Wall mounted

Communication port protocol :

Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none

Communication port support :

Screw terminal block RS485

Local signalling :

Green indicator light power ON, Yellow flashing LED accuracy checking, alarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)

Mounting Mode :

Clip-on

Mounting Support :

DIN rail

Connections - terminals :

Current circuit screw terminals 0.01 in² (6 mm²), Voltage circuit screw terminals 0.00 in² (2.5 mm²), Input/output circuit screw terminals 0.00 in² (1.5 mm²), Communication screw terminals 0.00 in² (2.5 mm²)

Tightening torque :

Input/output circuit 4.43 lbf.in (0.5 N.m) Philips, Voltage circuit 4.43 lbf.in (0.5 N.m) Philips, Current circuit 7.08 lbf.in (0.8 N.m) pozidriv, Communication 4.43 lbf.in (0.5 N.m) Philips

Provided equipment :

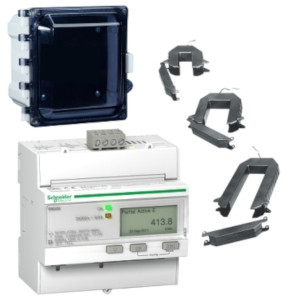

1 energy meter, 3 x 200 A current transformer, 1 enclosure

Product certifications :

ANSI, UL, CSA

NEMA Degree of Protection :

NEMA 4X

Ambient air temperature for operation :

-13…158 °F (-25…70 °C)

Category :

US10PL109775

Discount Schedule :

0PL1

GTIN :

3606486796023

Returnability :

Yes

Country of origin :

US

Unit Type of Package 1 :

PCE

Number of Units in Package 1 :

1

Package 1 Height :

9 in (228.60 mm)

Package 1 Width :

10 in (254.00 mm)

Package 1 Length :

10 in (254.00 mm)

Package 1 Weight :

9.95 lb(US) (4.513 kg)
