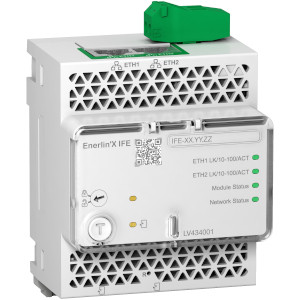

LV434001

[Us] rated supply voltage :

24 V DC - 20...10 %~~

Accessory / Separate Part Category :

Spare part Compact NS1600b...3200

Accessory / Separate Part Category :

Spare part Compact NS630b...1600

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

116

Communication Network Type :

Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45

Communication Network Type :

Universal Logic Plug 2-port RJ45

Connections - Terminals :

RJ45 connector

Current Consumption :

120 mA

Depth :

2.8 in (71 mm)

Device Short Name :

IFE

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

Flame Retardance :

V0 conforming to IEC 60695-2-11

Flame Retardance :

V0 conforming to IEC 60947-1

Flame Retardance :

V0 conforming to UL 94

Global Keywords :

Communication

Global Keywords :

Enerlinx

Global Keywords :

Ethernet interface module

Global Keywords :

IFM

Global Keywords :

ULP

Global warming ; Total life cycle? :

116 kg CO2 eq.

Halogen content performance :

Halogen free plastic parts product

Height :

4.1 in (105 mm)

IP Degree of Protection :

Connectors IP2x

IP Degree of Protection :

Front panel IP4X

IP Degree of Protection :

Other parts IP3x

Manufacturer :

Schneider Electric

Maximum Supply Current :

3 A

Mounting Mode :

By clips

Mounting Support :

35 mm DIN rail

Net Weight :

6.4 oz (182.5 g)

Number of Units in Package 2 :

192

Number of Units in Package 3 :

24

Override :

By software

Package 2 Height :

23.62 in (60.0 cm)

Package 2 Length :

27.56 in (70.0 cm)

Package 2 Weight :

136.215 lb(US) (61.786 kg)

Package 2 width :

31.50 in (80.0 cm)

Package 3 GTIN :

43606481283137

Package 3 Height :

11.81 in (30.0 cm)

Package 3 Length :

15.75 in (40.0 cm)

Package 3 Weight :

14.822 lb(US) (6.723 kg)

Package 3 width :

11.81 in (30.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pollution Degree :

3

Product Certifications :

CE

Product Certifications :

CULus

Product Certifications :

FCC

Product Certifications :

GOST

Product Or Component Type :

Interface module

PVC free :

Yes

Range :

Enerlin'X

Range Compatibility :

ComPact ComPact NS1600b...3200

Range Compatibility :

ComPact ComPact NS630b...1600

Range Compatibility :

ComPact ComPact NSX

Range Compatibility :

Masterpact MasterPact MTZ

Range Compatibility :

Masterpact MasterPact NT

Range Compatibility :

Masterpact MasterPact NW

Range Compatibility :

PowerPact PowerPact H

Range Compatibility :

PowerPact PowerPact J

Range Compatibility :

PowerPact PowerPact L

Range Compatibility :

PowerPact PowerPact P

Range Compatibility :

PowerPact PowerPact R

Recycled metal content at CR level :

0

Relative Humidity :

5…85 %

SCIP Number :

85cf87a9-f02c-4835-a3e1-cdf0007ece66

shock resistance :

1000 m/s²

Standards :

IEC 60947-6-2

Standards :

IEC 60950

Standards :

UL 508

Standards :

UL 60950

Take-back :

No

Temperature Ambient Operating Range :

-4…158 °F (-20…70 °C)

Temperature Shipping and Storage Range :

-40…185 °F (-40…85 °C)

Unit Type of Package 2 :

P06

Unit Type of Package 3 :

S03

UNSPSC Classification v19 :

39121601

UNSPSC Classification v23 :

39121601

vibration frequency :

5…8.4 Hz

Volume of Package 2 :

336000.0 cm3

Volume of Package 3 :

36000.0 cm3

Warranty :

18 months

Web Server :

Embedded HTTP server

Width :

2.8 in (72 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/COMPACT%20NSX%20&%20NSXM%20CATALOG%202019.PDF
