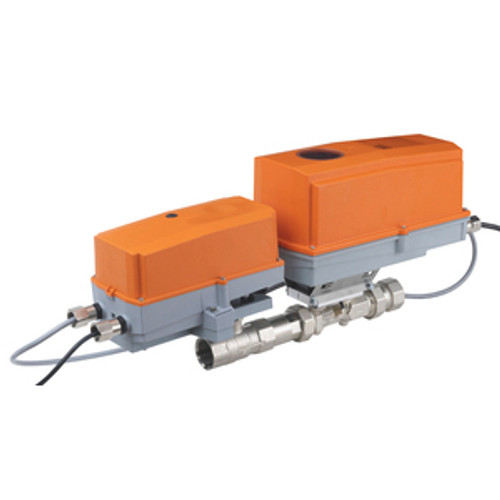

ConfigurableElectr. 2-way PI-CCV EPIV, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, DN 1"[25], Internal thread, GPM 18.2, -10...120°C [14...250°F]
- Pattern : 2-way
- Flow : 18.2
- Flow rate adjustable : 25...100% of V'nom
- Flow temperature : 14...250°F [-10...120°C]
- Body Pressure Rating : 360 psi
- Leakage rate {Tools} : 0% leakage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1" [25]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 26 W
- Power Consumption For Wire Sizing : 29 VA
- Connection Supply Control : Cable 3 ft. [1 m], 6 x 0.75 mm²
- Protection category : IP66
- Degree Of Protection NEMA : NEMA 4
- Enclosure Type : UL Enclosure Type 4
